Have you ever wondered how your electric kettle knows when to stop boiling? It’s not magic—it’s all thanks to the thermostat. In this article, we’ll explore the science behind electric kettles, how they automatically shut off, and why this feature is so important. You’ll learn how thermostats enhance safety, energy efficiency, and ease of use in every kettle.

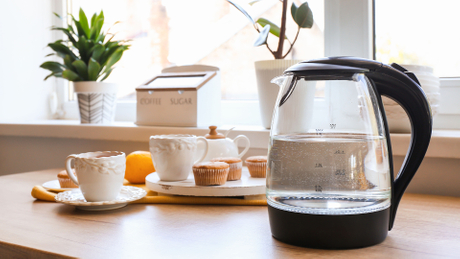

An electric kettle is a kitchen appliance designed to quickly heat water using electrical energy. It works by passing an electric current through a metal coil or plate, which heats up and transfers heat to the water. This process is fast and efficient, boiling water much quicker than traditional methods like using a stove.
The key components of an electric kettle include:
Heating element: The metal coil or plate that heats the water.
Thermostat: Monitors the water temperature and triggers the shut-off mechanism.
Automatic shut-off feature: Turns off the kettle once the water reaches a certain temperature.
The automatic shut-off feature in electric kettles ensures safety and convenience.
Safety: Without this feature, the kettle could continue boiling the water indefinitely, causing it to overheat, boil dry, or even start a fire.
Convenience: It eliminates the need for constant supervision while the kettle boils. Once the water reaches the boiling point, the kettle will turn off on its own, saving time and effort.
The heating element is the core part of an electric kettle. It is usually made of a metal coil or plate located at the base of the kettle. When the kettle is plugged in and turned on, electrical current flows through the heating element. This current encounters resistance, which turns electrical energy into heat.
This heat is transferred directly to the water, causing the temperature to rise quickly. The more powerful the heating element, the faster the water heats up.
A thermostat in an electric kettle is a crucial component for regulating the water temperature. Its primary job is to monitor the water’s temperature and control the heating process. The thermostat ensures the kettle doesn’t continue heating the water once it reaches the desired temperature, preventing over-boiling.
The thermostat often uses a bimetallic strip. This strip is made from two different metals, which expand at different rates when heated. As the water heats, the bimetallic strip bends due to the differing expansion rates. Once the water reaches boiling temperature, the strip bends enough to break the electrical circuit, stopping the heating element.
Steam from the boiling water helps activate the thermostat. A steam channel inside the kettle carries the steam to the thermostat, quickly raising its temperature. When the thermostat detects this rapid temperature rise, it snaps into action and cuts the power to the heating element.
A bimetallic thermostat is the heart of an electric kettle’s shut-off mechanism. It consists of two metals, each expanding at different rates when heated. When the water reaches boiling point, the heat causes the metals to expand unevenly. This expansion makes the strip bend, breaking the electrical circuit and cutting off power to the heating element.
The process is triggered by steam. As the water heats, steam rises and reaches the thermostat. This quick temperature increase causes the bimetallic strip to bend faster, ensuring the kettle shuts off as soon as the water boils.
Steam plays a key role in activating the thermostat. Inside the kettle, a steam channel directs the steam from the boiling water to the thermostat. This steam increases the thermostat’s temperature rapidly, triggering the shut-off mechanism.
Using steam to activate the thermostat instead of the water temperature itself allows the kettle to respond faster. It ensures that the kettle switches off promptly, preventing any over-heating or damage.
The boiling point of water varies depending on factors like altitude and water purity. At sea level, water boils at 100°C. However, at higher altitudes, the boiling point decreases due to lower atmospheric pressure.
In addition, impurities in water can raise the boiling point slightly. These factors influence when the thermostat triggers the shut-off, explaining why kettles may stop slightly before or after 100°C.
| Thermostat Type | Description | Advantages | Disadvantages |
|---|---|---|---|
| Mechanical Thermostats | Use a bimetallic strip that bends when heated to disconnect the circuit. | Simple, reliable, cost-effective, durable. | Less precise, fewer advanced features. |
| Electronic Thermostats | Use digital sensors to detect temperature with greater accuracy. | More accurate, allows for variable temperature settings. | More expensive, complex. |
| Dual Thermostat Systems | Include both Boil-Dry Protection and Steam-Activated Thermostats. | Added safety features like boil-dry protection and accurate shut-off. | Can be more expensive. |
| Boil-Dry Protection Thermostat | Prevents operation without water or if water runs dry. | Protects the kettle from damage and safety risks. | N/A |
| Steam-Activated Thermostat | Triggered by steam to ensure the kettle switches off once boiling occurs. | Accurate, quick response to boiling point. | N/A |
An advanced thermostat provides key safety features such as automatic shut-off and boil-dry protection. Once the water reaches boiling point, the thermostat disconnects the heating element, preventing over-heating or damage. Additionally, the boil-dry protection ensures the kettle doesn't operate when there's no water, eliminating the risk of overheating the heating element.
Kettles equipped with advanced thermostats are energy-efficient. Once the water reaches the boiling point, the thermostat automatically cuts off the power, preventing unnecessary energy consumption. This ensures that energy is only used to heat the water to the desired temperature, reducing waste and lowering your energy bills.
The thermostat not only ensures safe operation but also helps extend the kettle's lifespan. By controlling the heating element's activity and preventing overheating, it reduces wear and tear. This helps the kettle last longer, saving you money on replacements and repairs.
In this article, we explored how electric kettles know when to stop, focusing on the role of thermostats. We discussed the importance of bimetallic and electronic thermostats in regulating temperature and preventing over-boiling. We also covered the benefits of advanced thermostats, including improved safety, better energy efficiency, and enhanced durability. Choosing a kettle with an efficient thermostat ensures a safer, more reliable, and longer-lasting kitchen appliance.
A: The boiling point of water varies based on altitude and water purity. At higher altitudes, the boiling point is lower, causing the kettle to switch off before reaching 100°C. Additionally, impurities in water can slightly raise the boiling point.
A: No, a thermostat is essential for safe kettle operation. It prevents overheating, boil-dry risks, and ensures automatic shut-off when the water reaches boiling point.
A: Regularly clean the kettle to remove limescale buildup. Avoid boiling anything other than water and ensure the thermostat's steam path is clear for accurate operation.
