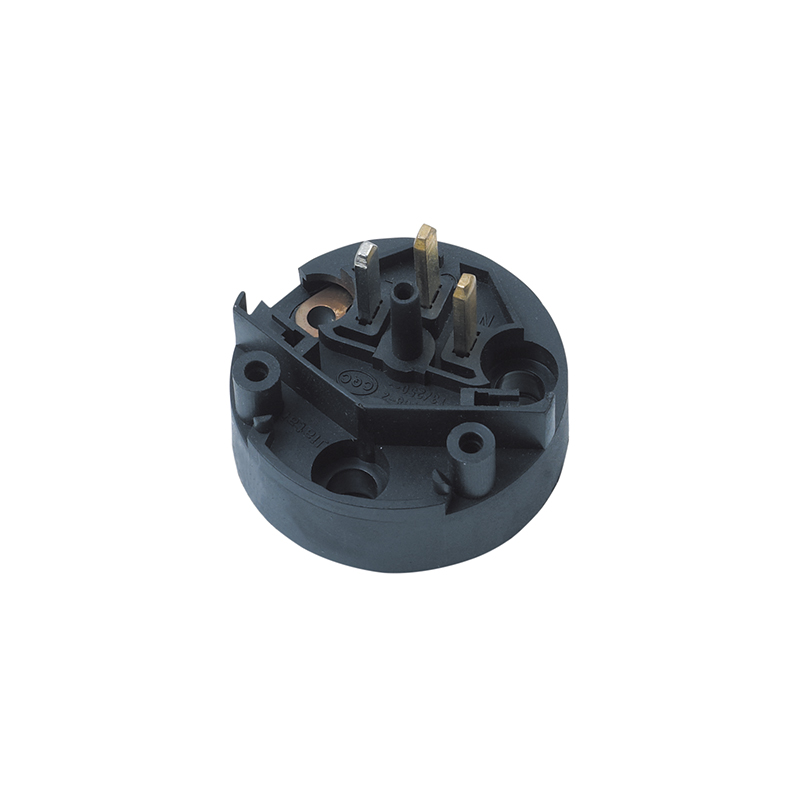

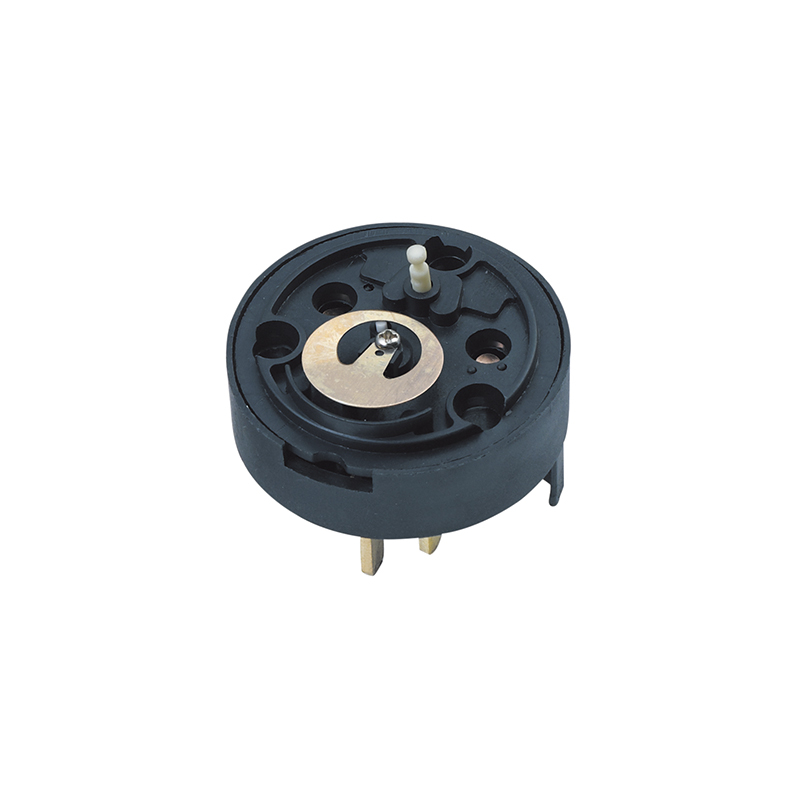

3-Pole Immersion Kettle Switch
JIATAI KSD168-2BC12 Electronic Thermostat
The KSD168-2BC12 is a pocket-size, three-pole immersion switch built for fast, safe temperature control in electric kettles. Rated 10 A continuous (13 A peak) at 250 V~, it handles daily boiling cycles without hesitation.
Snap the compact body onto the heating tube, connect the three quick-fit terminals and twist the calibration screw—installation takes seconds and no extra hardware. A precision bi-metal strip cuts power at the set point and re-engages automatically, while an independent dry-boil fuse adds a second layer of protection.
| Series Specification | |
| Ratings and Approval | KSD168-AS3J: 220V-240V~10A(SEMKO) 110/120/220/240V~13A(CQC),125V~13A(ETL) |
| Max.Ambient temperature | T125 |
| Operating life | 10000 cycles |
| Temperature | ±5 ℃ |
| Hi-pot | 2200V AC 1 minutes |
| Poles | 3 Poles |
| Color | Black |
