KSD688-AT1A-2
Jiatai
| Quantity: | |
|---|---|
Model: KSD688-AT2A-2 | 10 A / 13 A | 250 V~

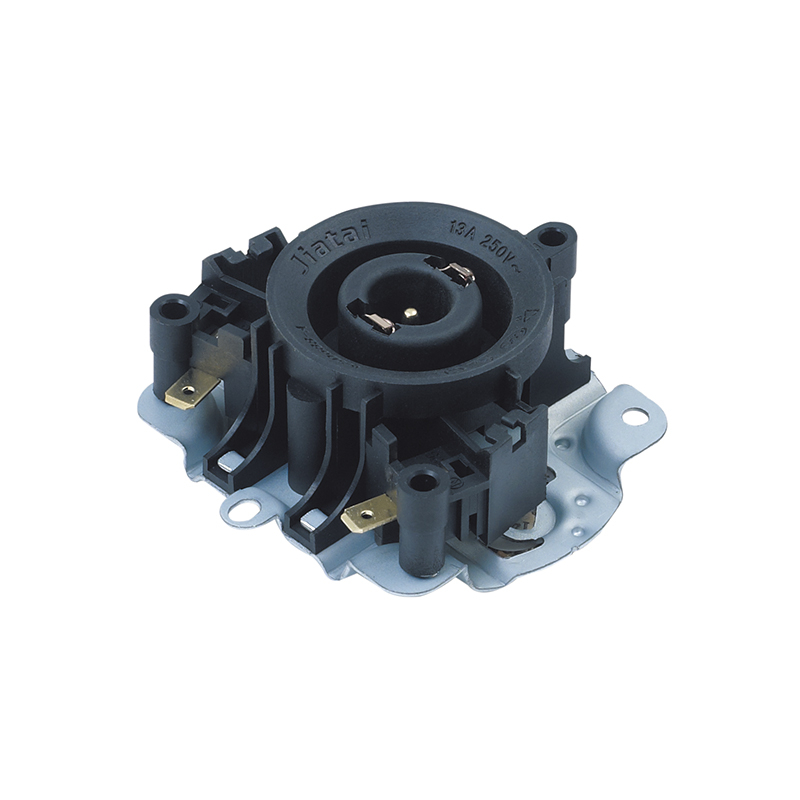

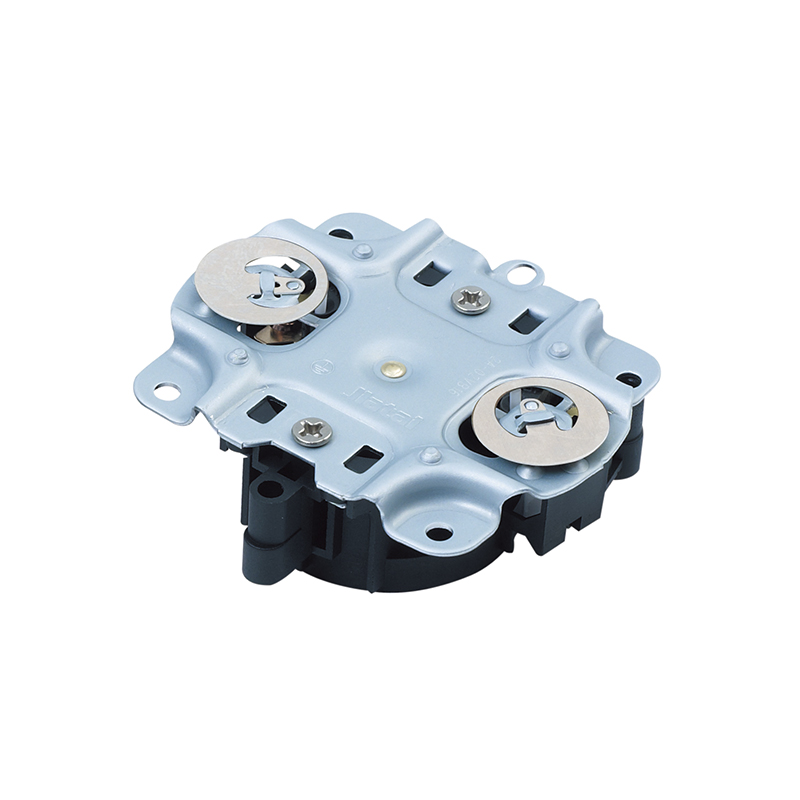

The KSD688-AT2A-2 is a heavy-duty kettle thermostat built for smooth, all-around performance. Its three-pole design and full-circle swivel base let you place and lift the kettle from any angle—no alignment needed.
Made from high-grade materials, the unit resists heat, moisture and daily wear, giving your electric kettle a longer, safer life. Mounting is tool-free: snap it on, connect the leads and you're ready to go.
Inside, an auto-reset thermal cut-out prevents dry-boil damage, while the precision bimetal disc keeps water exactly at the set point. The result: consistent temperatures, lower energy use and peace of mind.
| Series Specification | |
| Ratings and Approval | KSD688-AT2A-2: 250V~13A(CQC CB TUV) 125V-13A (ETL) KSD688-AYT2A-2: 250V~10A(CQC CB TUV) |
| Max.Ambient temperature | T125 |
| Operating life | 10000 cycles |
| Temperature | ±5 ℃ |
| Hi-pot | 2200V AC 1 minutes |
| Poles | 3 Poles |
| Color | Black |
Model: KSD688-AT2A-2 | 10 A / 13 A | 250 V~
The KSD688-AT2A-2 is a heavy-duty kettle thermostat built for smooth, all-around performance. Its three-pole design and full-circle swivel base let you place and lift the kettle from any angle—no alignment needed.
Made from high-grade materials, the unit resists heat, moisture and daily wear, giving your electric kettle a longer, safer life. Mounting is tool-free: snap it on, connect the leads and you're ready to go.
Inside, an auto-reset thermal cut-out prevents dry-boil damage, while the precision bimetal disc keeps water exactly at the set point. The result: consistent temperatures, lower energy use and peace of mind.
| Series Specification | |
| Ratings and Approval | KSD688-AT2A-2: 250V~13A(CQC CB TUV) 125V-13A (ETL) KSD688-AYT2A-2: 250V~10A(CQC CB TUV) |
| Max.Ambient temperature | T125 |
| Operating life | 10000 cycles |
| Temperature | ±5 ℃ |
| Hi-pot | 2200V AC 1 minutes |
| Poles | 3 Poles |
| Color | Black |
