KSD688-GT1A
Jiatai
| Quantity: | |
|---|---|

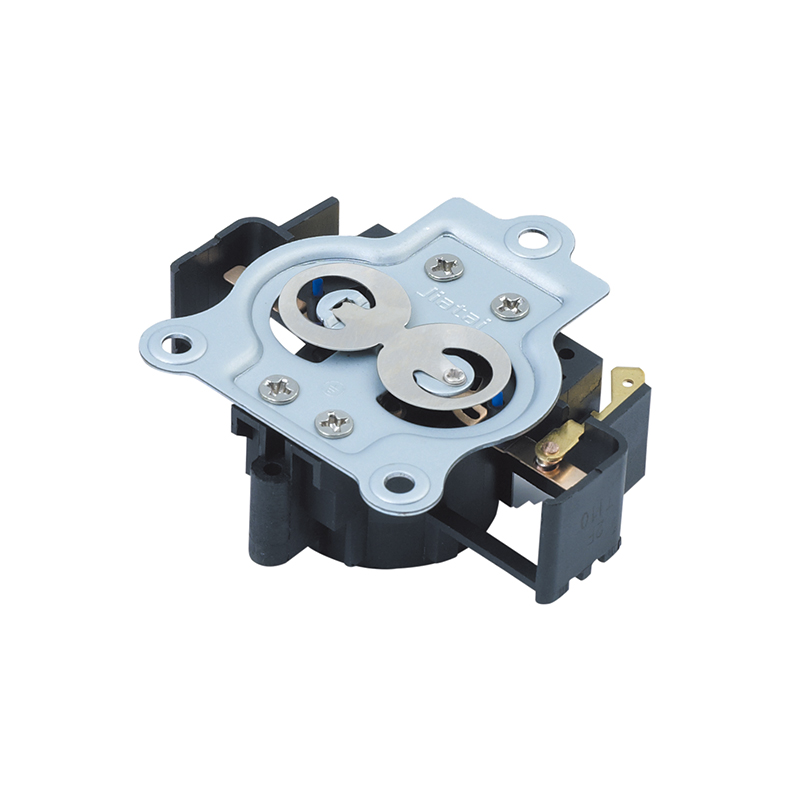

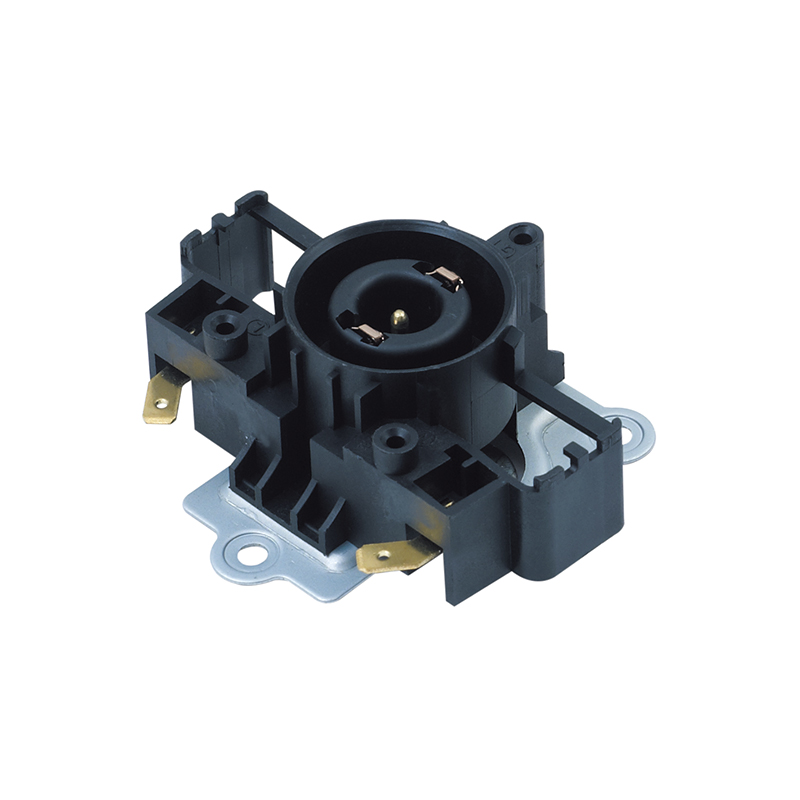

KSD688-GT1A/GY1A Triple-Pole Rotary Kettle Thermostat
This precision temperature regulation module, rated for 10A/13A at 250V AC, delivers professional-grade performance enhancement for electric kettles. The three-contact design pairs with unrestricted 360-degree rotational mounting to provide exceptional installation versatility and operational convenience.
Developed by thermostat engineering specialists, the controller features ruggedized construction that withstands rigorous daily use while maintaining thermal stability. The integrated mounting system permits rapid, straightforward attachment directly to the kettle chassis without complex procedures.
Advanced protection systems include anti-dry-burn safeguards combined with accurate temperature modulation, creating a secure heating environment. Its adaptable architecture supports broad compatibility across diverse electric kettle models and specifications, addressing varied consumer and commercial requirements.
| Series Specification | |
| Ratings and Approval | KSD688-GT1A: 250V~13A(CQC CB) 125V-13A (ETL) KSD688-GYT1A: 250V~10A(CQC CB) |
| Max.Ambient temperature | T125 |
| Operating life | 10000 cycles |
| Temperature | ±5 ℃ |
| Hi-pot | 2200V AC 1 minutes |
| Poles | 3 Poles |
| Color | Black |
