When it comes to modern kitchen appliances, the electric kettle stands out for its convenience and speed. However, behind its simple appearance lies a carefully engineered electric kettle circuit that controls power, heating, and safety functions. For those interested in appliance repair, design, or even selecting reliable components, understanding how an electric kettle circuit operates is essential. At Zhejiang Jiatai Electrical Appliance Manufacturing Co., Ltd., we specialize in producing high-quality thermostats and safety devices that are key parts of these circuits. This article will walk you through the electric kettle circuit, explaining its key components, control mechanisms, safety layers, and even cordless base design. By the end, you’ll have a clearer insight into how the electric kettle works and why reliable circuit parts matter.
The electric kettle circuit starts with the power source and ends with the heating element, forming a controlled flow of electricity that boils water efficiently and safely.
The journey begins at the power inlet — either a plug connected to a mains socket or a cordless base contact. From here, electricity passes through a switch or coupler, which the user controls to turn the kettle on or off. Once the switch is closed, current flows to the heating element, a resistive coil that converts electrical energy into heat.
The circuit completes its loop as the current returns through the neutral line back to the power source. This simple path ensures the heating element receives sufficient power to boil water quickly. At Zhejiang Jiatai, our thermostats are precisely engineered to fit into this flow, ensuring accurate temperature control and durability.
For kettles with metal bodies, grounding is an essential safety measure integrated into the electric kettle circuit. The earth wire provides a safe path for stray currents in case of internal faults, preventing electric shocks. Grounding connects the metal exterior to earth, so if a live wire accidentally touches the casing, the circuit breaker or fuse will trip, protecting users. This layer of safety is critical, especially in metal-bodied kettles.
A major feature of electric kettles is the automatic shut-off function, which prevents overheating or boiling dry conditions. This is managed by the control and switching components within the electric kettle circuit.
The steam thermostat is positioned near the spout, where rising steam triggers its mechanism. When water reaches boiling point, steam reaches the thermostat sensor and causes the bimetal strip inside to bend due to heat. This bending action triggers the switch to cut off the power supply to the heating element, stopping the boiling process.
This clever design ensures the kettle switches off promptly after boiling, saving energy and preventing hazards. Zhejiang Jiatai’s thermostats employ precise bimetal designs that guarantee consistent and reliable switching at the right temperature.
The kettle’s on/off switch may behave differently depending on design. A latching switch stays in the "on" position once pressed until toggled again. In contrast, a momentary switch only stays on while pressed and switches off when released.
Most electric kettles use latching switches for ease of use — the user presses once to start heating, and the auto shut-off cuts power later. Understanding this switching logic helps troubleshoot or design better kettle circuits.
Safety is paramount in any household appliance, especially one involving water and electricity. The electric kettle circuit integrates multiple safety layers to prevent accidents.

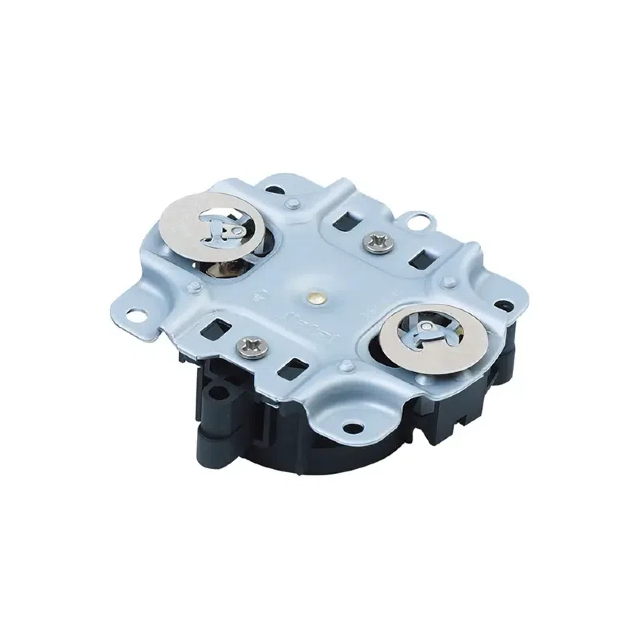

The thermal fuse is installed in series with the heating element and thermostat. Unlike the resettable thermostat, the thermal fuse is a one-time-use device designed to blow and cut the circuit permanently if excessive temperature is detected. This acts as a fail-safe if the thermostat fails to switch off the heating element.
Because the thermal fuse cannot be reset, its activation signals a serious fault requiring component replacement. Zhejiang Jiatai manufactures highly reliable thermal fuses that ensure this critical protection layer functions without fail.
Imagine the thermostat malfunctions or the kettle runs dry. The heating element temperature rises uncontrollably. The thermal fuse detects this excessive heat and opens the circuit, preventing fire risks.
Similarly, if steam doesn’t reach the thermostat due to blockages or damage, the thermal fuse still protects the user. These redundant safety devices together create a safer electric kettle circuit.
Many modern kettles feature cordless bases for convenience and safer handling. The docking system itself forms a part of the electric kettle circuit.

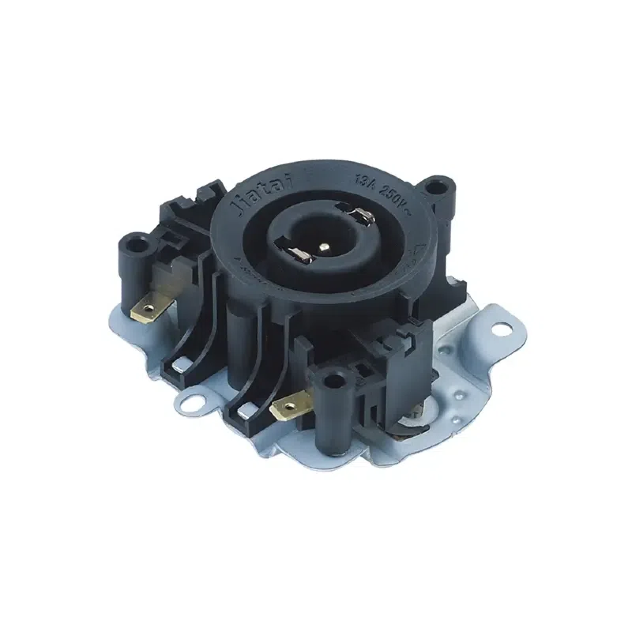

The cordless base contains spring-loaded contacts aligned to the kettle’s bottom connectors. When the kettle is placed on the base, these contacts complete the power circuit, allowing current flow from the base to the kettle’s heating element.
Importantly, these contacts are recessed or shielded so no live pins are exposed when the kettle is lifted, preventing accidental electric shocks.
Cordless kettles often include safety interlocks that detect if the kettle is properly docked before allowing power flow. If the kettle is not correctly seated, the circuit remains open, preventing accidental heating.
These features combine to provide user-friendly and safe cordless kettle operation, with Jiatai’s thermostats and cutouts seamlessly integrating into these designs.
If an electric kettle stops working correctly, understanding the electric kettle circuit can aid in diagnosis.
Check Power Supply: Confirm the plug and socket deliver power.
Inspect Base Contacts: Ensure the kettle base contacts and docking pins are clean and properly aligned.
Test the Switch: Verify that the on/off switch engages correctly and isn’t stuck or damaged.
Examine the Thermostat: Test for continuity and proper switching action at boiling temperature.
Check Thermal Fuse: Use a multimeter to check if the fuse is blown and replace if necessary.
Opening sealed kettle units may void warranties and expose dangerous live parts. Always recommend qualified technicians for repairs and replacements. Using quality components like Jiatai thermostats ensures fewer failures and safer operation.
Understanding the electric kettle circuit helps both consumers and professionals appreciate the engineering behind a simple yet essential kitchen appliance. From power input through the switch and heating element to the precise thermostat and safety thermal fuse, each component plays a critical role in safe and efficient operation. Zhejiang Jiatai Electrical Appliance Manufacturing Co., Ltd. prides itself on providing premium thermostats and safety devices that enhance electric kettle circuits worldwide. If you want to ensure your products use reliable and tested components, Jiatai is your trusted partner. For more information or inquiries about our thermostats and other safety devices, please contact us today.
