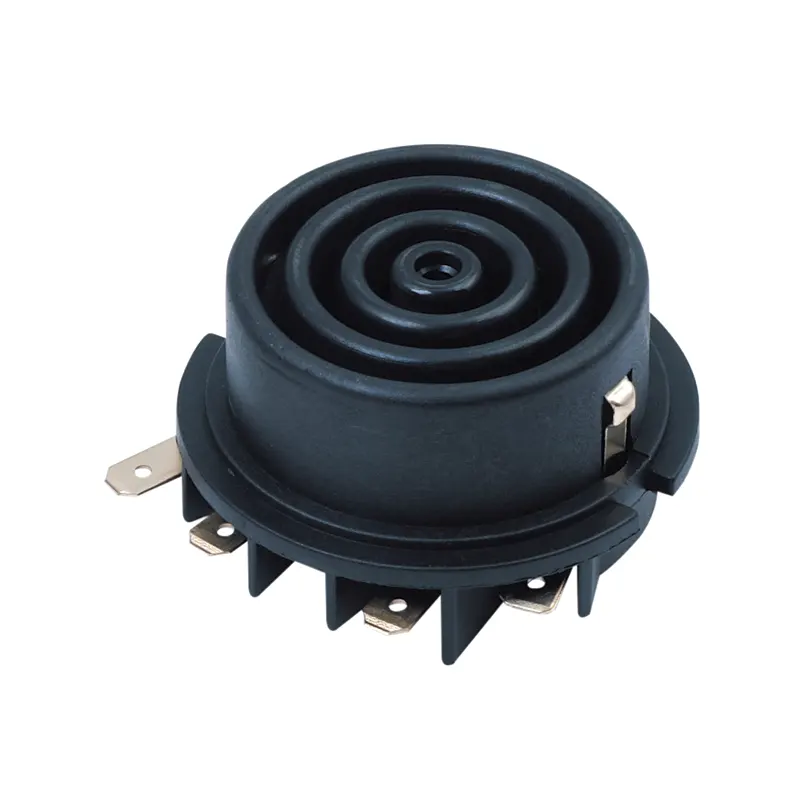

China Electrical Connector Supplier

A high‑quality Electrical Connector is judged by its ability to maintain low and stable contact resistance, withstand mechanical stress, and seal out environmental contaminants. JIATAI classifies its product line by pin count, current rating, ingress protection, and termination style, making it straightforward to match the connector to the application. Below is a detailed breakdown of the primary parameters we engineer into every connector.

Electrical Characteristics

• Rated Current: From 1 A for signal‑level contacts up to 300 A for power distribution. JIATAI heavy‑duty connectors use silver‑plated copper alloy contacts to minimize temperature rise at full load.
• Rated Voltage: Ranges from 30 V DC for miniature circular connectors to 1 000 V AC/DC for high‑voltage industrial units. Each housing design is tested per IEC 60664‑1 to confirm clearance and creepage distances.
• Contact Resistance: ≤ 2 mΩ on power contacts and ≤ 10 mΩ on signal contacts, measured at 1 A DC. JIATAI uses selective gold plating on mating surfaces to ensure long‑term stability.
• Insulation Resistance: Greater than 5 000 MΩ at 500 V DC after thermal aging, guaranteeing signal integrity even in humid environments.
• Dielectric Withstanding Voltage: 1 500 V AC for 60 s between contacts and between contact and shell, with no flashover.

Frequently Asked Questions

What is the difference between IP67 and IP69K ratings, and which one should I choose?

IP67 means the connector is dust‑tight and can withstand immersion in water up to 1 m depth for 30 minutes. IP69K is designed for high‑pressure, high‑temperature washdown processes typical in food, beverage, and heavy‑vehicle cleaning. If your equipment is regularly cleaned with steam jets or high‑pressure nozzles, choose an IP69K‑rated Electrical Connector such as the JIATAI JT‑M12 series with stainless steel housing and high‑temperature EPDM seals. For general outdoor use where occasional submersion is possible but not high‑pressure spray, IP67 is normally sufficient and more economical.

How does contact plating affect the lifetime of an Electrical Connector?

Contact plating serves two purposes: it protects the base metal from corrosion and provides a stable low‑resistance interface. Gold plating, even at 0.4 µm thickness, prevents oxide formation on the mating surface and is recommended for low‑voltage, low‑current signals. Silver plating offers slightly lower resistivity and handles higher currents but can tarnish in sulfur‑rich atmospheres if not protected by a lubricant. JIATAI applies a thin anti‑tarnish coating on silver‑plated contacts to mitigate this. For connectors that are mated infrequently (a few times per year), gold is the safest choice. For frequently cycled power connectors in clean environments, silver provides a cost‑effective, low‑resistance path. Our engineers can run comparative cost‑per‑cycle analyses using your expected mating frequency and environmental conditions.

Can I mix power and signal contacts in a single JIATAI connector?

Yes, JIATAI’s modular rectangular series (JT‑610) and several circular designs allow hybrid contact arrangements. You can place 40 A power contacts, 5 A signal pins, thermocouple contacts, and even fiber optic termini in one frame. This reduces the number of connectors on a panel and simplifies harness routing. Our engineering team verifies the creepage and clearance distances automatically when you submit a mixed‑contact layout. We also ensure that the heat generated by high‑current contacts does not raise the temperature of adjacent signal contacts beyond their rated limits.

What is the typical lead time for custom Electrical Connector configurations from JIATAI?

Standard product families ship within 3–5 business days from our distribution centers. For configured assemblies where customers specify pin count, contact type, wire gauge, and overmolding, lead time is normally 10–15 business days. Fully custom connectors involving new mold tooling may require 6–8 weeks for prototype approval. JIATAI invests heavily in rapid prototyping; we 3D‑print aluminum and polymer connector bodies within 48 hours for functional testing before committing to production tooling. This approach has shortened development cycles for many industrial OEMs.

How do I prevent fretting corrosion in an Electrical Connector used in a vibrating environment?

Fretting corrosion occurs when two mated contact surfaces undergo micro‑motion, generating fine wear particles that oxidize and increase contact resistance. To combat this, JIATAI employs several design features: high‑normal‑force female contacts with multiple redundant contact points, lubricant‑retaining contact geometry, and split‑tine designs that provide a wiping action during mating. For extreme vibration (above 20 g), we specify a 1.2 µm gold layer on both contacts and use stainless steel coupling mechanisms that maintain constant contact pressure. Our JT‑169 series also includes an optional silicone‑based contact lubricant that is applied at the factory and rated for the life of the connector.

Are JIATAI Connectors compliant with RoHS and REACH?

All JIATAI connector products are fully RoHS (Directive 2015/863) and REACH compliant. We do not use lead, mercury, cadmium, hexavalent chromium, or PBB/PBDE flame retardants in our standard materials. For customers needing exemptions for legacy military applications, we maintain a separate production line with back‑compatible materials. Certificates of compliance are available for download with every part number on our website.
