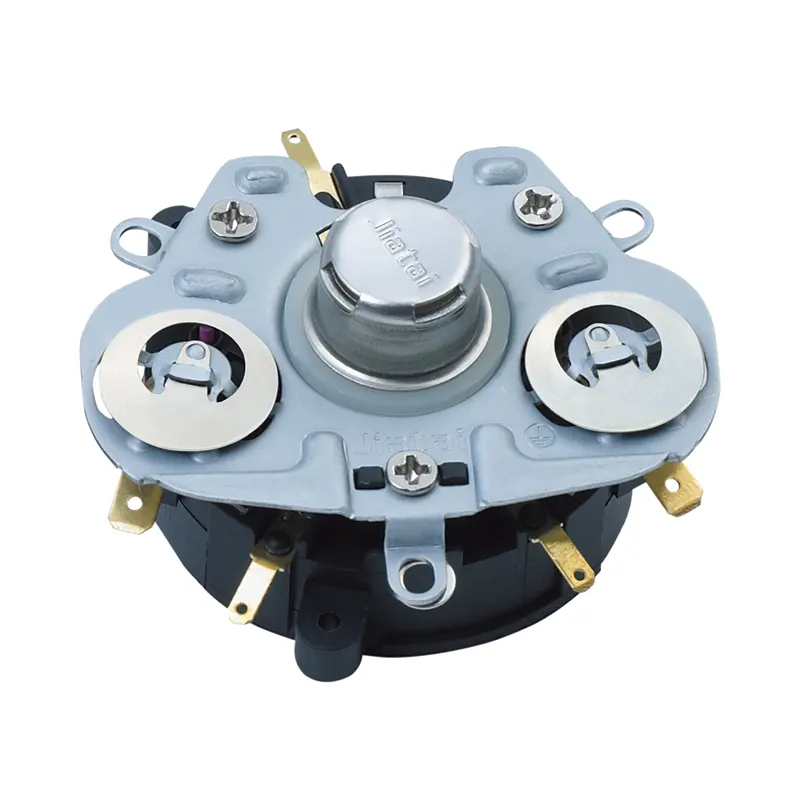

Understanding the Pumping Electrical Thermostat

In modern industrial and commercial heating systems, temperature control demands both precision and durability. The pumping electrical thermostat has become a central component in fluid circulation setups, ensuring that heat transfer systems operate within strict thermal boundaries. Unlike conventional thermostats, this device is specifically engineered to manage the thermal cycling of liquids, integrating seamlessly with pumps, boilers, and heating jackets. From injection molding machines to chemical reactors, the performance of temperature regulation directly impacts product quality and energy consumption.

JIATAI has invested two decades in refining this technology, delivering pumping electrical thermostats that combine intelligent control algorithms with industrial-grade materials. These units are designed to sense liquid temperature with extreme accuracy and then switch electrical outputs to maintain a preset temperature band. Whether the fluid is water, oil, or a specialized thermal medium, the JIATAI pumping electrical thermostat reacts within milliseconds to thermal drift, protecting pumps from overheating and systems from catastrophic failure.

Typical Industrial Applications

• Plastics processing: Controlling mold temperature in injection molding machines, pipe extrusion lines, and blow molding stations.
• Chemical and pharmaceutical: Jacketed reactor temperature management, heat-transfer oil loops, and distillation columns.
• Food and beverage: Pasteurizers, chocolate tempering machines, and brewery mash tuns where product integrity depends on exact temperature cycles.
• HVAC and building services: Circulating hot water loops in district heating, solar thermal systems, and heat pump auxiliary circuits.
• Oil and gas: Pipeline tracing, crude oil heating, and tank farm fluid circulation.
• Power generation: Turbine lube oil temperature control and cooling water circuits.

FAQ

How do I choose the right temperature sensor type?

The choice depends on the fluid temperature range and chemical composition. Pt100 RTDs offer excellent accuracy and stability for temperatures from -50°C to 200°C, making them ideal for water and mild chemical applications. K-type thermocouples cover a wider range up to 350°C and are preferred for hot oil systems. If the fluid is corrosive, pair the sensor with a PTFE or stainless steel thermowell. JIATAI provides sensor selection guidance with each thermostat model to ensure compatibility.

Can the JIATAI thermostat directly switch a three-phase pump?

No, the internal relay is rated for single-phase loads. For three-phase pumps, the thermostat’s output drives an external contactor or motor starter. JIATAI recommends using a contactor with a 230V AC coil matched to the relay rating, and installing a thermal overload relay downstream for additional motor protection.

What does the PID control mode offer over simple on/off?

Simple on/off control cycles the pump when the temperature crosses a set threshold plus or minus the hysteresis value. This can cause overshoot and oscillation. PID (Proportional-Integral-Derivative) control modulates the output, either by time-proportioning the relay or using a 4-20 mA signal to a variable speed drive. For processes requiring tight regulation, such as medical device manufacturing, PID minimizes temperature deviation and improves product uniformity. The JIATAI PT-MDIG includes auto-tune PID that learns system response for optimal parameters.

Is it necessary to use a thermowell?

While not mandatory, a thermowell is strongly recommended. It protects the sensor from mechanical damage, allows removal without draining the system, and isolates the sensor from high-pressure fluid. JIATAI offers thermowells matched to the probe dimensions, machined from 316L stainless steel with 1/2-inch NPT process connection. Using a thermowell also simplifies compliance with sanitary requirements in food and pharmaceutical installations.

How do I set the hysteresis correctly?

Start with a value around 2–5°C for most liquid applications. If the pump cycles too frequently (more than 6 starts per hour), increase the hysteresis. If the temperature swings are too wide for the process, narrow the differential until the pump stabilizes within an acceptable band. JIATAI digital thermostats display both the set point and differential, making adjustments intuitive. For systems with large thermal mass, a wider hysteresis prevents unnecessary pump wear without sacrificing performance.

What maintenance does the thermostat require?

Maintenance is minimal but critical. Inspect the sensor tip for fouling or corrosion every six months; clean it with a non-abrasive solvent if necessary. Verify the set point accuracy using a calibrated reference thermometer and adjust if drift exceeds 1°C. Check electrical terminals for tightness and signs of overheating annually. JIATAI enclosures are gasketed, but the gasket should be replaced if the cover is opened frequently in dusty environments. No internal calibration batteries are required—all settings are stored in non-volatile memory.

Can I use a pumping electrical thermostat in an ATEX hazardous zone?

Standard models are not rated for explosive atmospheres. However, JIATAI can supply ATEX-certified versions upon request, with intrinsically safe sensor circuits and an Ex d flameproof enclosure. Contact the JIATAI engineering team with the zone classification and gas group to receive a compliant solution.

What is the expected service life of the relay?

The mechanical life of the relay under rated load exceeds 100,000 cycles. With proper arc suppression (RC snubber or varistor) and a hysteresis setting that limits cycling to around 10–20 operations per day, the relay should last well over a decade. For applications demanding millions of cycles, JIATAI recommends the SSR output variant, which has no moving parts and avoids contact wear entirely.

Customization and OEM Partnerships

Beyond the standard product range, JIATAI works closely with OEMs to develop custom pumping electrical thermostat solutions. Possibilities include bespoke sensor lengths, special voltage outputs, or integration of a pump run-time totalizer. The engineering team can also create pre-assembled control panels that combine the thermostat, contactor, and motor protection into a plug-and-play module. This reduces assembly time and ensures agency approvals are maintained, which is especially valuable for export-oriented machinery builders.

Every custom project benefits from JIATAI’s in-house calibration laboratory, where each thermostat is verified against traceable standards before shipment. Quality control records are archived and available for audits, giving end users confidence in the measurement chain from day one.

Environmental Compliance

All JIATAI pumping electrical thermostats are RoHS compliant and manufactured in ISO 14001-certified facilities. The packaging uses recycled materials where possible, and the products themselves are designed for easy disassembly to facilitate end-of-life recycling. By reducing pump energy consumption, each installed thermostat also contributes to a lower carbon footprint, aligning with corporate sustainability goals.

Global Support and Stock Availability

JIATAI maintains warehouses in North America, Europe, and Asia to ensure rapid fulfillment. Standard models ship within 48 hours, and emergency orders can be dispatched the same day. Technical support is available 24/7 via phone and email, staffed by engineers who can troubleshoot installations remotely. The website provides wiring diagrams, firmware updates, and a comprehensive knowledge base for the complete range of pumping electrical thermostats.

For projects requiring large volumes, JIATAI offers quantity discount pricing and consignment stock agreements. Training workshops can be conducted on-site or online, covering correct configuration, preventive maintenance, and failure analysis. These resources help maintenance teams build in-house expertise and reduce reliance on external service providers.
