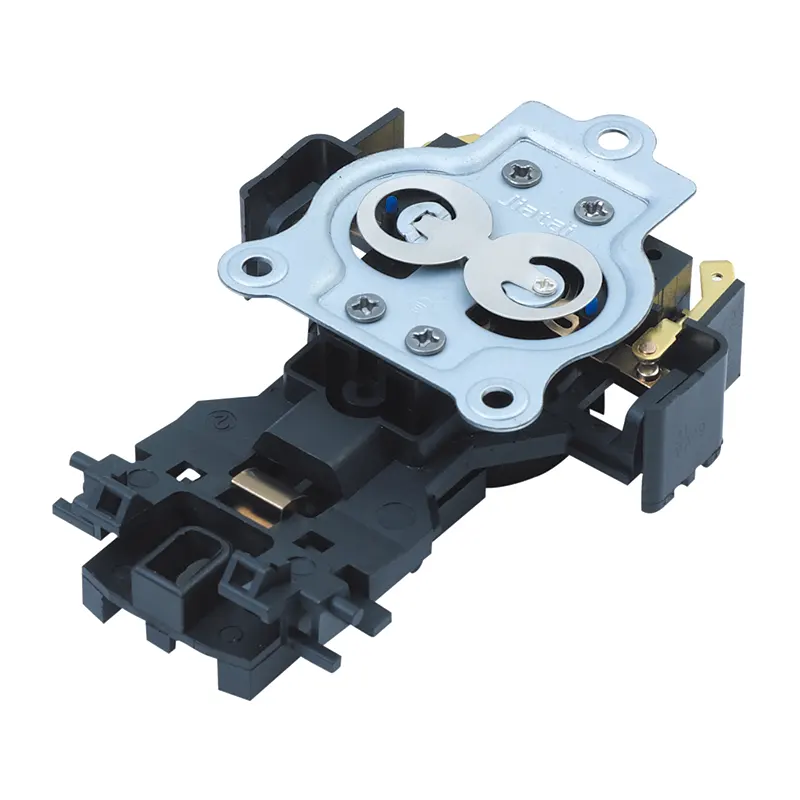

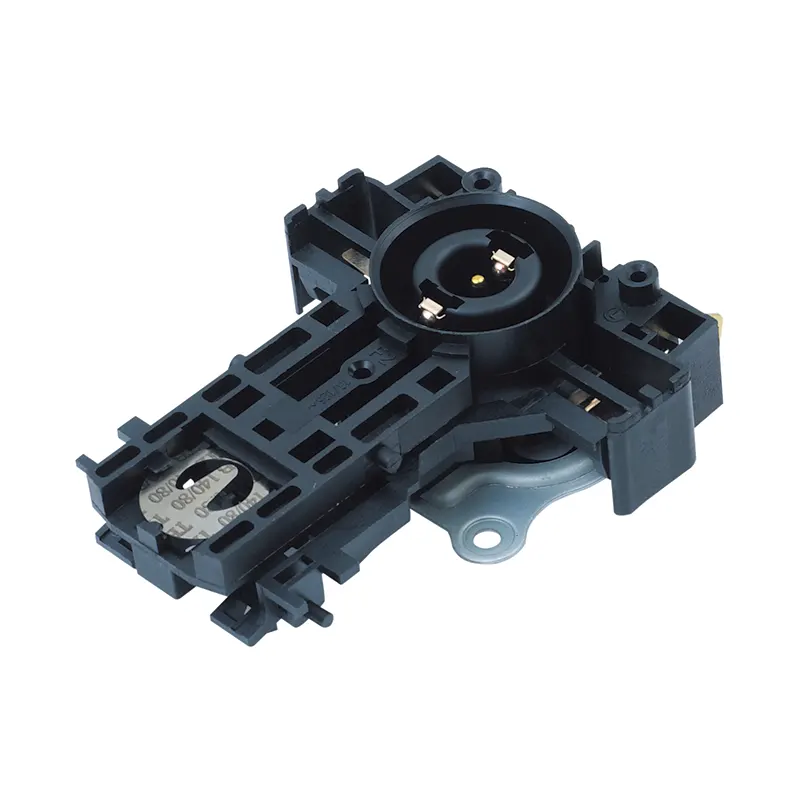

Elctrical Kettle Controller

Electric kettles require a controller that can handle repeated heating cycles while maintaining consistent switching performance. The Elctrical Kettle Controller combines mechanical temperature sensing with a compact rotating connection structure, making it suitable for household kettles, cordless kettles, and other small heating appliances.

Unlike fixed-position controllers that may limit assembly flexibility, this 3-pole design allows 360° rotation during installation. This helps manufacturers simplify product assembly and improve compatibility with different kettle body structures.

Product Specifications

Pole Configuration: 3 Poles

Rotational Capability: 360 Degrees

Current/Voltage Rating: 10A/13A, 250V

Designed with an emphasis on operational stability and product quality, Elctrical Kettle Controller is engineered for sustained performance under regular use conditions. Its installation protocol has been simplified to facilitate efficient mounting on the kettle body.

The unit incorporates advanced protective features, including dry burn prevention and temperature modulation, thereby ensuring operational safety. Its broad applicability renders it suitable for integration across diverse electric kettle product lines.

We invite you to consider this controller for your manufacturing requirements and welcome the opportunity to discuss how it may enhance your product offerings.

Why Do Kettle Manufacturers Choose This Controller?

Does the 3-pole structure fit existing kettle designs?

The KSD688-FT2A adopts a standard 3-pole connection structure commonly used in electric kettle applications. Its compact design allows integration into different kettle bases while supporting customized terminal configurations according to customer requirements.

For OEM projects, Jiatai can provide drawings and technical data to help customers confirm mechanical and electrical compatibility before production.

Does the 360° rotation design improve assembly efficiency?

Yes. The rotating structure allows flexible positioning between the kettle body and power base.

During production assembly, operators do not need to adjust the kettle orientation repeatedly, which helps simplify installation procedures and reduce assembly errors.

Can it maintain stable temperature control after long-term use?

The controller is designed for repeated heating cycles commonly found in household electric kettles.

The internal temperature sensing mechanism provides consistent switching action, while the optimized contact structure helps reduce contact resistance and improve electrical stability during operation.

Main Features

Flexible 3-Pole Rotational Structure

The 360° rotating connection design provides greater installation flexibility compared with fixed-position controllers, making it suitable for different kettle base layouts.

Reliable Electrical Performance

Rated at 10A/13A 250V AC, the controller supports common electric kettle power requirements and maintains stable current transmission during repeated switching.

Long-Term Mechanical Durability

Designed for frequent household usage, the controller supports more than 10,000 operating cycles under rated conditions.

Safety-Oriented Temperature Control

The controller automatically responds to temperature changes during boiling operation, helping protect heating components and improve appliance safety.

OEM Customization Capability

Jiatai supports customization of:

Terminal configuration

Electrical rating

Temperature setting

Mounting structure

Packaging requirements

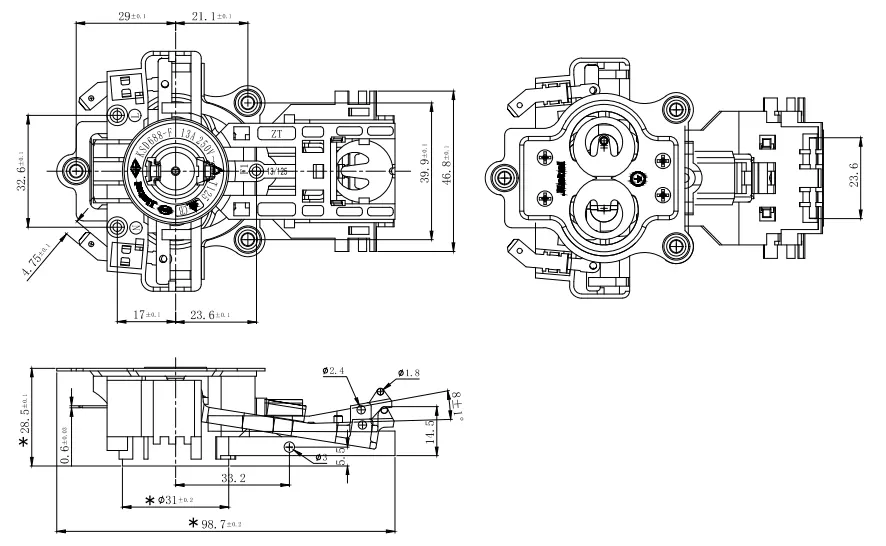

Product Parameter

Structure

Production Details

Why Work With Jiatai?

With decades of experience in kettle temperature control components, Jiatai supports global appliance manufacturers with stable production, OEM customization, and reliable supply capability.

Our focus is not only producing kettle controllers, but helping customers develop safer and more competitive heating appliances.
