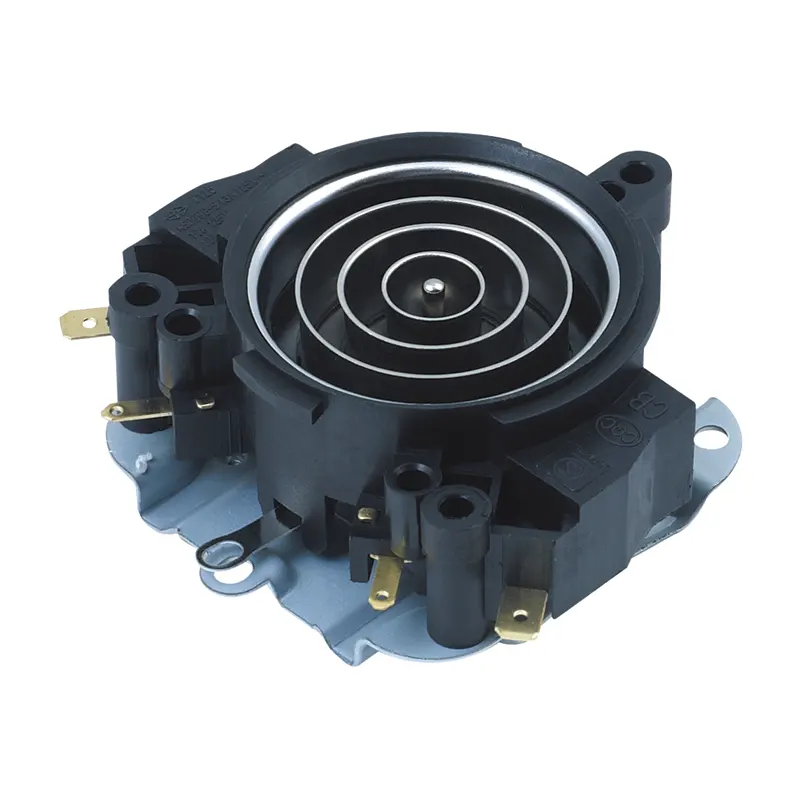

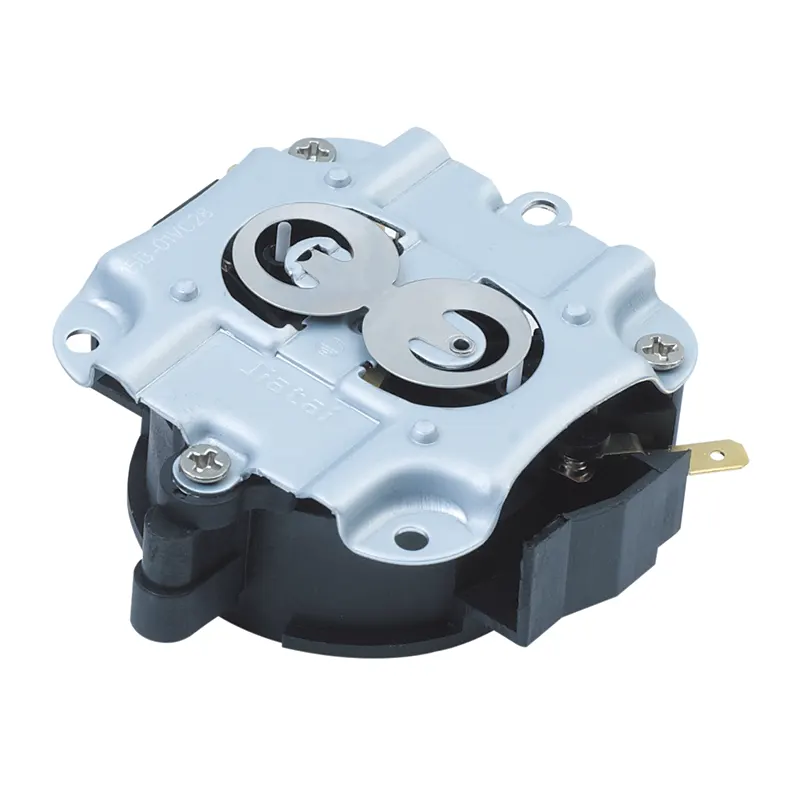

5 Pins Electric Kettle Controller

Modern electric kettles are becoming more multifunctional, requiring controllers that can manage not only heating power but also additional electrical connections within limited internal space. The JIATAI 5 Pins Electric Kettle Controller is developed for kettle systems using multi-terminal connection structures. Compared with standard 3-pin designs, the 5-pin configuration allows manufacturers to integrate more electrical functions while keeping the overall structure compact. The controller adopts a mechanical temperature sensing system with reliable contact switching performance. It helps maintain consistent boiling control, reduces connection failures caused by unstable contacts, and supports repeated daily operation in household kettle applications.

What Should Buyers Check Before Selecting a 5-Pin Kettle Controller?

Does the 5-pin structure match my existing kettle design?

For replacement projects, pin configuration is one of the most important factors.

A 5 Pins Electric Kettle Controller needs to match the original wiring layout, mounting position, and electrical requirements to ensure proper operation.

JIATAI supports compatibility confirmation based on customer samples, drawings, or product photos before bulk ordering.

Why choose a 5-pin structure instead of a standard design?

Different kettle models require different electrical configurations.

The 5-pin structure provides additional connection options for kettle manufacturers who need more integrated control functions while maintaining a compact installation size.

It is especially suitable for cordless kettles with rotating bases and customized internal circuit designs.

Can the controller maintain stable performance during frequent use?

Electric kettles often experience repeated heating cycles every day.

The KSD688-5S2A is designed with durable contact materials and optimized switching components to maintain stable electrical performance during continuous household operation.

The mechanical structure helps reduce unnecessary circuit complexity and improves long-term reliability.

Is the installation process suitable for mass production?

For appliance manufacturers, assembly efficiency directly affects production cost.

The 5 Pins Electric Kettle Controller is designed with a practical mounting structure, allowing easier installation during kettle assembly lines.

Before mass production, customers can verify installation compatibility through samples to reduce modification costs during production.

Product Parameter (Specification)

Application Areas

The 5 Pins Electric Kettle Controller is mainly used in:

Cordless Electric Kettles：Suitable for kettle designs requiring rotating base connections and stable temperature cutoff control.

Multifunction Electric Kettles：Applicable to kettles with additional electrical functions requiring more connection points.

Replacement and Repair Markets：Suitable for distributors and service providers looking for reliable replacement controllers matching existing kettle models.

OEM Kettle Projects：Supports customized kettle development requiring specific electrical parameters and mounting solutions.

Why 5-Pin Controllers Require Careful Supplier Selection ?

A kettle controller is a small component, but its performance directly affects user safety and product reliability.

For 5-pin structures, consistency between batches is especially important because incorrect terminal positioning or unstable contact performance may affect final kettle assembly.

JIATAI provides production control from component processing to finished product inspection, helping customers maintain stable quality during long-term supply.

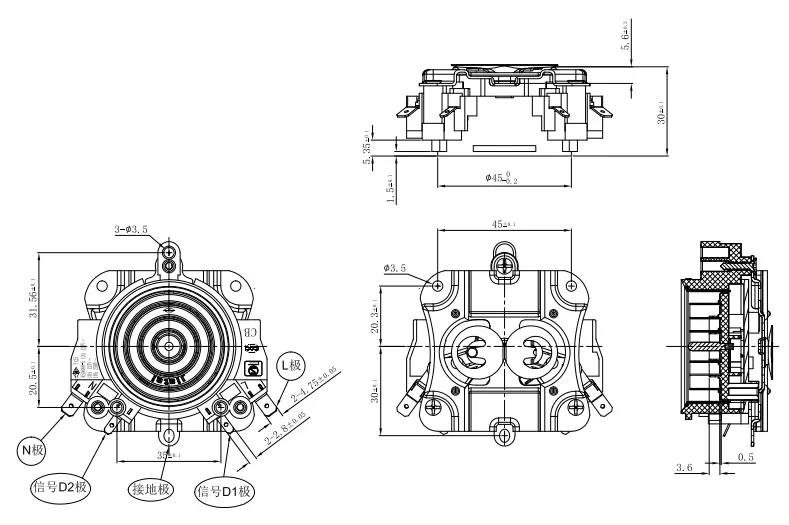

Structure

Request a 5-Pin Kettle Controller Solution

Looking for a reliable 5 Pins Electric Kettle Controller for your kettle production or replacement project?

Send your current model information, drawings, or application requirements to JIATAI. Our technical team will help confirm compatibility and provide a suitable controller solution.

Production Details
