Electrical Bimetal Thermostat

The core of this thermostat is the bimetal sensing element, which consists of two metals with different thermal expansion characteristics.

When temperature increases, the bimetal strip bends according to the preset thermal response point and activates the switching mechanism. This simple mechanical principle allows the thermostat to provide consistent temperature control and overheat protection during repeated appliance operation.

Compared with electronic temperature controllers, the Electrical Bimetal Thermostat structure offers advantages in simplicity, durability and easy integration into compact household appliances.

Developed for Appliance Manufacturers Requiring Stable Thermal Control

Electrical Bimetal Thermostat components are widely used where reliable temperature switching and safety protection are required.

The JIATAI KSD568 series is designed for applications such as:

Electric kettles

Tea makers

Small heating appliances

Household electrical products requiring thermal protection

The thermostat helps equipment automatically interrupt power when the preset temperature is reached, supporting safer appliance operation.

Installation-Friendly Structure for Production Integration

For appliance manufacturers, component installation efficiency directly affects production costs.

The KSD568 Electrical Bimetal Thermostat adopts a compact structure with plastic and brass materials, allowing easier integration into existing appliance designs. The 3-pole connection and 360° rotating structure provide additional installation flexibility, helping engineers adjust component positioning according to different product layouts.

This practical design also supports easier maintenance and replacement during product servicing.

Product Parameter

Flexible Specification Selection

JIATAI offers different current specifications within the KSD568 platform to match different appliance power requirements.

The KSD568-CKT2A model supports 250V~10A, suitable for standard heating applications.

The KSD568-CT2A model supports 250V~13A and 125V~13A, providing higher current capacity for appliances requiring stronger switching capability.

This specification flexibility allows manufacturers to select suitable thermostat versions according to product design and target market requirements.

Quality Verification for Long-Term Appliance Operation

JIATAI evaluates thermostat performance through multiple reliability tests before mass production delivery.

The Electrical Bimetal Thermostat is verified through:

10,000-cycle operating life testing

2200V AC high voltage withstand testing

Temperature accuracy inspection within ±5℃

Electrical switching performance evaluation

These tests help ensure consistent switching characteristics for continuous household appliance operation.

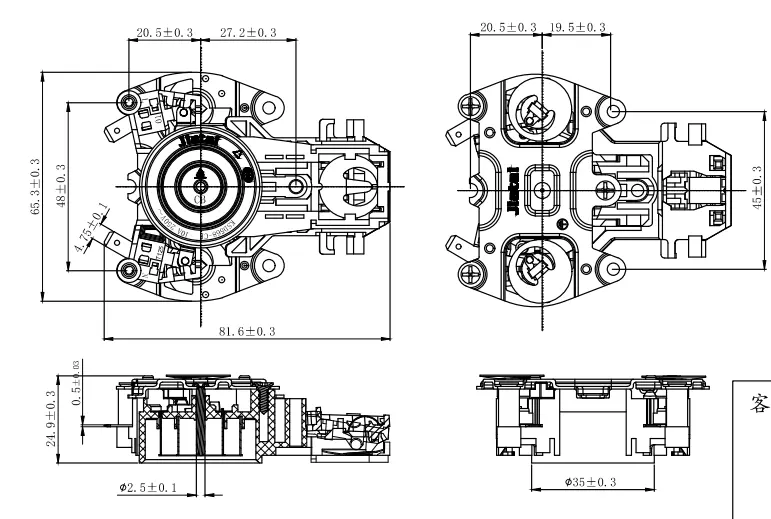

Structure

Production Details

FAQ

1. How does an Electrical Bimetal Thermostat work?

An Electrical Bimetal Thermostat uses a bimetal element that reacts to temperature changes through thermal expansion differences, activating the switch mechanism to control the electrical circuit.

2. What appliances can use JIATAI Electrical Bimetal Thermostat?

It is suitable for electric kettles, tea makers and other small household appliances requiring mechanical temperature control and overheating protection.

3. What is the difference between 10A and 13A bimetal thermostats?

The main difference is the electrical load capacity. The 13A version supports higher current applications, while the 10A version is designed for standard power requirements.

4. Why choose a bimetal thermostat instead of an electronic temperature controller?

Bimetal thermostats use a simple mechanical switching structure, providing reliable operation, easy integration and cost advantages for many household appliance applications.

5. Can JIATAI customize Electrical Bimetal Thermostat solutions?

Yes. JIATAI supports customized production based on customer drawings, samples and technical requirements.

6. How does JIATAI ensure thermostat quality for bulk orders?

JIATAI applies production inspections, life cycle testing and electrical safety verification to maintain consistent quality for large-volume appliance manufacturing.
