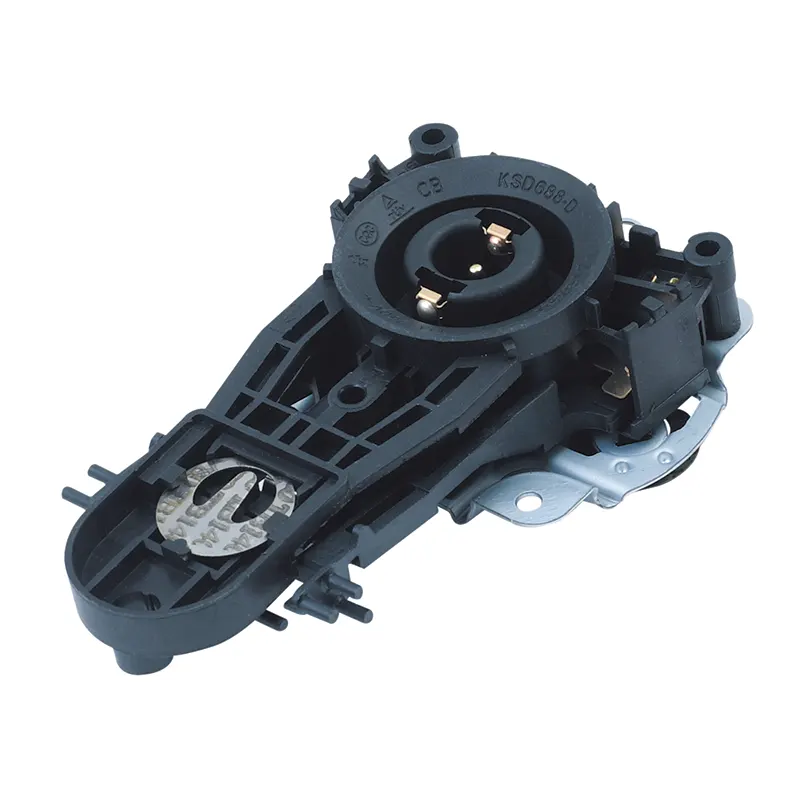

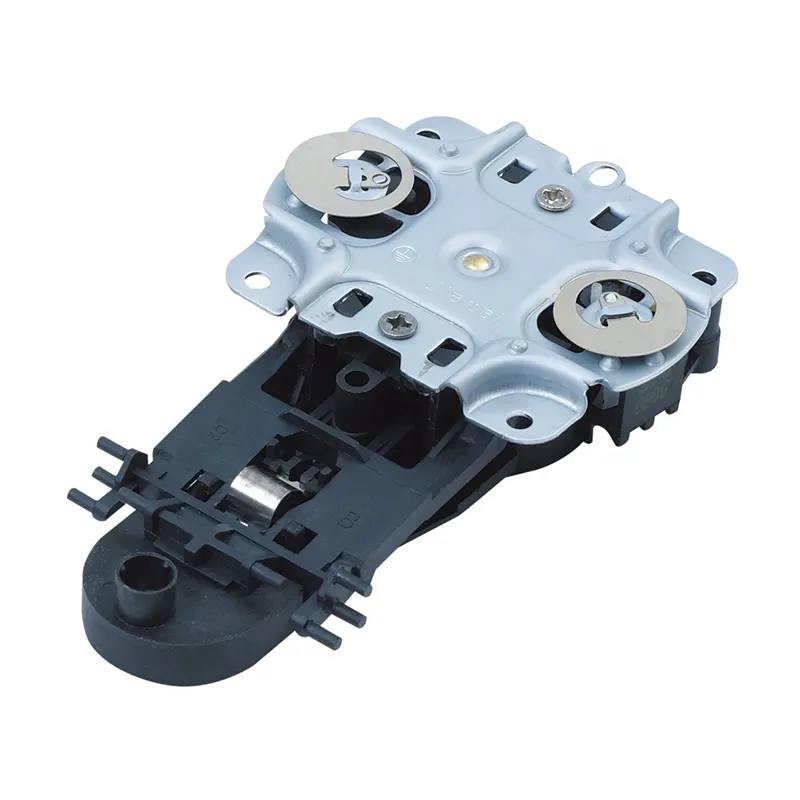

Electrical Kettle Thermostats

The Electrical Kettle Thermostats are developed as a practical temperature control component for electric kettle production. Instead of relying on complicated electronic systems, it uses a proven mechanical thermostat structure to monitor temperature changes and control the heating circuit.

When the kettle reaches the preset boiling temperature, the thermostat responds through its internal switching mechanism to disconnect power, helping improve safety and prevent continuous heating.

Its compact design allows appliance manufacturers to integrate the thermostat into different kettle structures while maintaining efficient production processes.

3-Pole Connection and 360° Rotational Structure

Electric kettle designs vary in internal layout, making installation flexibility an important factor for manufacturers.

The KSD688-DT2A-2 features a 3-pole connection design combined with a 360° rotating structure, allowing installers to adjust the component position according to different kettle base configurations.

This design helps:

simplify assembly adjustment

improve compatibility with different kettle models

reduce installation limitations during production

Built for Daily Heating Cycles and Stable Switching

A kettle thermostat needs to maintain consistent performance through repeated heating operations.

JIATAI Electrical Kettle Thermostat uses a mechanical temperature sensing structure to provide stable response during daily kettle use. The thermostat controls the heating process by detecting temperature changes and triggering automatic power interruption at the required point.

The mechanical design offers a practical balance between durability, manufacturing efficiency and cost control, making it suitable for large-volume kettle production.

Specification Options for Different Kettle Models

The KSD688 series provides two electrical configurations to match different kettle requirements.

The KSD688-DT2A-2 supports 250V~13A and 125V~13A, making it suitable for kettle models requiring higher current capacity.

The KSD688-CYT2A-2 supports 250V~10A, providing a suitable option for standard electric kettle applications.

This allows OEM customers to select the appropriate thermostat according to product power design and market requirements.

Product Parameter

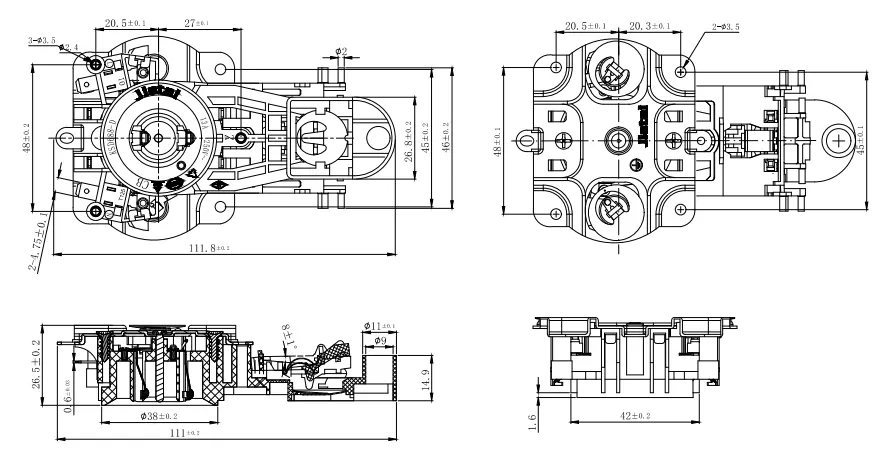

Structure

Production Details

FAQ

1. What is an Electrical Kettle Thermostat used for?

An Electrical Kettle Thermostat controls the heating process of electric kettles by sensing temperature changes and automatically switching off power when the preset temperature is reached.

2. What are the advantages of the KSD688-DT2A-2 thermostat?

The KSD688-DT2A-2 features a 3-pole structure, 360° rotational installation and 10A/13A electrical options, making it suitable for different electric kettle designs.

3. What is the difference between KSD688-DT2A-2 and KSD688-CYT2A-2?

The main difference is the rated current specification. DT2A-2 supports 13A applications, while CYT2A-2 supports 10A applications.

4. Can JIATAI supply Electrical Kettle Thermostat for OEM projects?

Yes. JIATAI provides OEM production based on customer drawings, samples and technical requirements for different kettle models.

5. How does JIATAI test kettle thermostat reliability?

JIATAI conducts operating life tests, high-voltage tests and temperature accuracy inspections to ensure consistent quality before delivery.

6. Why choose JIATAI as an Electrical Kettle Thermostat supplier?

JIATAI has specialized in thermostat manufacturing since 1985, with professional production capability, automated assembly lines and experience supporting global appliance customers.
