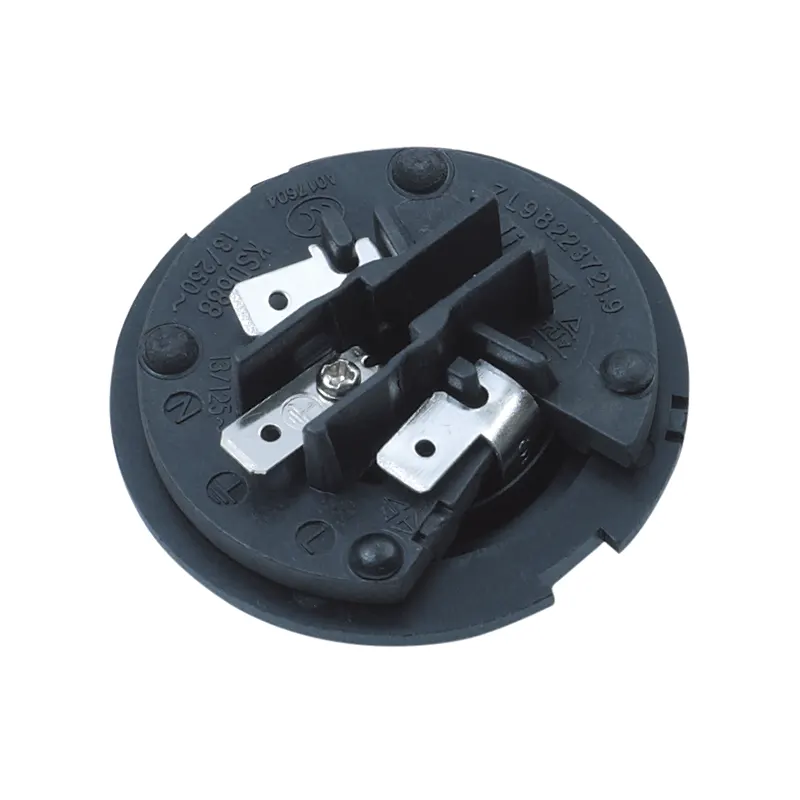

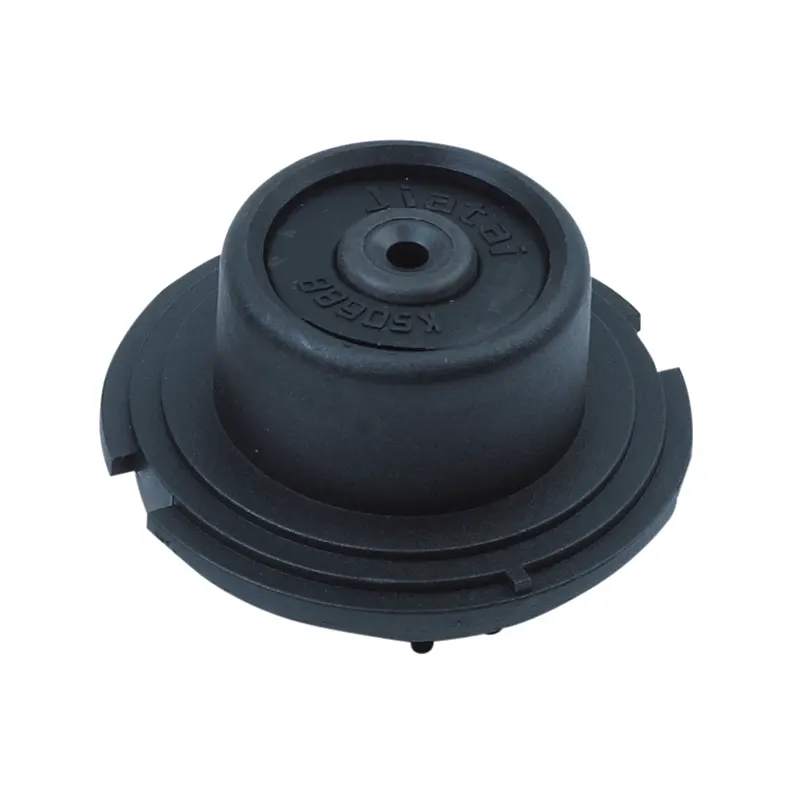

Coffee Make Waterproof Coupler

Unlike ordinary couplers used in dry conditions, coffee machine connection components must continue working in environments exposed to hot water, steam and occasional liquid contact. During daily operation, moisture may enter connection areas through condensation or accidental splashing, potentially affecting insulation performance and electrical stability. JIATAI Coffee Make Waterproof Coupler is developed with sealing protection around the connection structure, helping maintain safe electrical transmission in beverage appliances where moisture resistance is required.

Specification

Sealing Design for Better Protection Against Liquid Exposure

Waterproof performance depends not only on the outer housing but also on the complete sealing structure of the connector system.

The coupler design integrates:

Sealed contact protection

Heat-resistant insulating materials

Optimized internal structure

Stable mechanical connection

These features help reduce risks caused by moisture intrusion, corrosion and electrical leakage during long-term appliance operation.

Customization Options

Designed for Beverage Equipment with Higher Protection Requirements

Coffee machines and similar appliances have increasingly complex working environments, especially products combining heating, water circulation and electrical components.

JIATAI Coffee Maker Waterproof Coupler is suitable for equipment manufacturers developing products that require:

Improved moisture resistance

Stable power connection near heating areas

Long service reliability

Compact integration into appliance structures

Step 1: R&D and DFM Analysis: Our engineers analyze your CAD drawings to optimize wall thickness, draft angles, and sealing grooves. Using SLA 3D printing and soft silicone molding technologies, we can deliver functional prototypes within 5–7 business days.

Step 2: Precision Tooling & Stamping: Terminal Stamping: High-speed progressive stamping of phosphor bronze or beryllium copper terminals ensures exceptional contact stability. Molds are manufactured using high-speed CNC and EDM equipment, maintaining tolerances within ±0.005mm.

Step 3: Liquid Silicone Rubber (LSR) Overmolding: Zero-Gap Sealing: Eliminates manual assembly errors and ensures the waterproof gasket does not shift or degrade under heat. Advanced multi-material injection molding seamlessly bonds high-temperature thermoplastics with food-grade silicone seals.

Step 4: Plating & Ultrasonic Welding: Contact points feature thick gold or silver plating to resist corrosion from acidic coffee oils and limescale. Seamless Welding: Housings are sealed using high-frequency ultrasonic or laser welding techniques to create a permanent, airtight barrier.

Step 5: Fully Automated In-Line Inspection: High-Potential (Hi-Pot) Testing: AC 1500V/1-minute withstand voltage test to prevent electrical leakage in humid environments. Helium/Air Pressure Leak Testing: 100% testing at 0.3 MPa to verify IP67/IP68 airtightness. Optical Dimensional Inspection: CCD automated vision systems inspect critical dimensions and pin alignment.

Custom Development Based on Appliance Requirements

For new coffee machine projects, the coupler design often needs to match the complete appliance structure rather than function as an independent component.

JIATAI supports customization in areas including:

Waterproof protection level

Pin configuration

Contact materials

Housing structure

Wire connection requirements

Through sample verification before mass production, customers can confirm mechanical compatibility and electrical performance with their own appliance designs.

Application Areas

The Coffee Maker Waterproof Coupler is designed for appliances where electrical connection components need additional protection from water and steam exposure.

Typical applications include coffee machines, beverage makers, electric kettles and other small household appliances combining heating and liquid handling functions.

For these products, waterproof protection helps extend component durability and improves overall appliance reliability.

FAQ

Q1: What is the lead time for custom mold development?

A: DFM (Design for Manufacturability) and CAD design confirmation: 2–3 business days. Mold fabrication: 15–20 calendar days. First Article Inspection (FAI) samples: 3–5 days after mold completion. Overall, custom projects take less than 3 weeks from concept to sample approval.

Q2: Why do coffee machines require "waterproof connectors"?

A: Internal condensation, high-pressure steam, and accidental liquid splashes often penetrate standard electrical connectors, leading to short circuits, corrosion from limescale, or system failures. Our IP67 waterproof connectors feature an integrated silicone O-ring and an overmolded housing that completely seal out moisture, thereby significantly extending equipment service life.

Q3: Are the materials used for the waterproof seals resistant to high-temperature water or steam?

A: Yes. We use only FDA- and LFGB-certified, BPA-free Liquid Silicone Rubber (LSR) or Ethylene Propylene Diene Monomer (EPDM) rubber to manufacture our sealing components. The material retains its elastic memory and non-toxic properties at continuous operating temperatures of up to 200°C (392°F).

Q4: Can we customize wire harness lengths or specify connector terminals?

A: Certainly. We offer comprehensive integrated wire harness customization services, including wire gauge selection (e.g., UL1015/UL1332 high-temperature wire), custom lengths, heat-shrink tubing application, and options for branded terminals (such as JST, Molex, and TE connectors).

Are you looking for a tailored waterproof connection solution for a new generation of coffee machines? Contact our application engineers today to receive a free DFM (Design for Manufacturability) assessment, CAD models, and a custom quote. We provide DFM analysis and technical solutions within 24 hours.

Production Details

Need a Waterproof Connection Solution for Your Coffee Appliance?

JIATAI develops reliable Coffee Make Waterproof Coupler and liquid-based heating appliances, helping manufacturers improve connection safety in demanding environments.

Contact JIATAI with your application requirements and discuss a suitable connector design.
