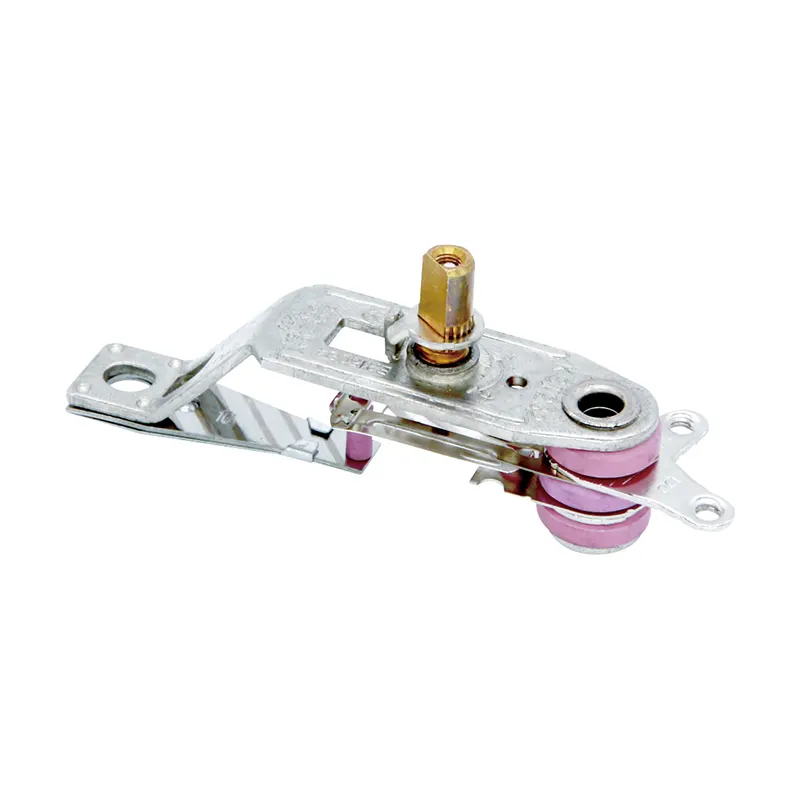

Dry Iron Adjusting Thermostat

The temperature requirement of a dry iron varies depending on different fabrics, from delicate materials requiring lower heat to cotton and linen requiring higher temperatures. JIATAI Dry Iron Adjusting Thermostat provides mechanical temperature adjustment through a bimetal sensing mechanism, allowing manufacturers to achieve multiple heating levels through a rotary temperature control structure. By maintaining stable ON/OFF switching during heating cycles, the thermostat helps reduce temperature fluctuation and supports consistent ironing performance.

High-Temperature Structure for Iron Heating Systems

Unlike general appliance thermostats, dry iron thermostats operate close to heating elements where continuous thermal stress and electrical switching occur.

The thermostat adopts a steatite ceramic base with strong heat resistance and insulation capability, helping prevent electrical tracking and maintaining stable performance in high-temperature environments.

Silver alloy contacts improve switching reliability under repeated electrical loads, making the component suitable for household irons requiring long service life.

Designed for OEM Dry Iron Assembly Requirements

Dry iron manufacturers often require precise mechanical matching between thermostat components and soleplate structures.

JIATAI supports configuration adjustments according to equipment design, including:

Shaft dimensions

Mounting bracket structure

Terminal configuration

Temperature setting points

Mechanical installation requirements

This allows customers to integrate the thermostat into different iron models while maintaining production efficiency.

Product Parameter (Specification)

Ratings  and Approval	250V~10A/16A(TUV  CQC  CB),125V~15A(UL&CUL)
Max.Ambient temperature	T250℃
Temperature control range	60~250℃
Temperature control precision	±15℃
Operating life	100000 cycles
On Angle(Room temp：25℃)	Can depend on design
Center distance	15mm/18mm/20mm
ON~OFF difference	Can depend on design
Length of tune up shaft	Can depend on design
Operating angle	Can depend on design
Terminal pin angle	Can depend on design
Terminal pin style	① Screw terminal ②Jointing terminal ③4.8/6.3MM Terminal pin
Hi-pot	1800V AC 1minute

Application Solution

Temperature Control Components for Electric Iron Manufacturers

Dry Iron Adjusting Thermostat is developed for manufacturers producing household ironing appliances that require stable heating control and reliable temperature adjustment.

Typical applications include:

Dry irons

Household ironing systems

Compact garment care appliances

Customized heating appliances

For appliance brands and OEM factories, this thermostat provides a practical solution for balancing temperature accuracy, electrical safety and long-term durability.

Request Custom Samples or a Quote

Ready to launch your project or need a replacement thermostat for an existing dry iron production line? Contact our technical sales team today.

Response Time: Quotes provided within 24 hours.

Sample Lead Time: 7–10 days for samples with custom shafts or temperature specifications.

Production Details

Product Selection Considerations

Selecting the correct thermostat depends on the heating structure and performance requirements of the iron.

Manufacturers should consider:

Temperature Settings

Different fabrics require different temperature ranges, so the thermostat adjustment profile should match the product positioning.

Mechanical Compatibility

Shaft length, mounting position and bracket dimensions must fit the iron housing and control knob design.

Electrical Requirements

Voltage, current rating and switching frequency should correspond with the heating element specifications.

For new product development or replacement projects, JIATAI can assist customers in evaluating suitable thermostat configurations.

Manufacturing Reliability

Dry iron thermostats need to withstand frequent temperature adjustments and repeated electrical switching.

JIATAI applies production verification procedures including temperature calibration, electrical insulation testing and durability evaluation to maintain consistent product performance.

With a service life of up to 100,000 cycles, the thermostat is designed for long-term use in household ironing applications.

FAQ

1. What is the function of a dry iron adjusting thermostat?

A dry iron adjusting thermostat controls the heating temperature of an electric iron by switching the heating circuit according to the selected temperature setting.

2. Why does a dry iron need an adjustable thermostat?

Different fabrics require different ironing temperatures. An adjustable thermostat allows users to select suitable heat levels for materials such as nylon, silk, wool and cotton.

3. What temperature range does this dry iron thermostat support?

The thermostat supports temperature control applications from 60℃ to 250℃ depending on configuration requirements.

4. Can JIATAI customize the thermostat for different iron models?

Yes. JIATAI can customize shaft dimensions, mounting structures, terminal configurations and temperature settings according to customer product designs.

5. What materials are used in this thermostat?

The thermostat uses a high-temperature-resistant ceramic base and durable contact materials designed for reliable operation in dry iron heating environments.

6. Why choose JIATAI as a dry iron thermostat supplier?

JIATAI specializes in temperature control components with over 40 years of manufacturing experience, providing customized thermostat solutions and stable supply support for global appliance manufacturers.
