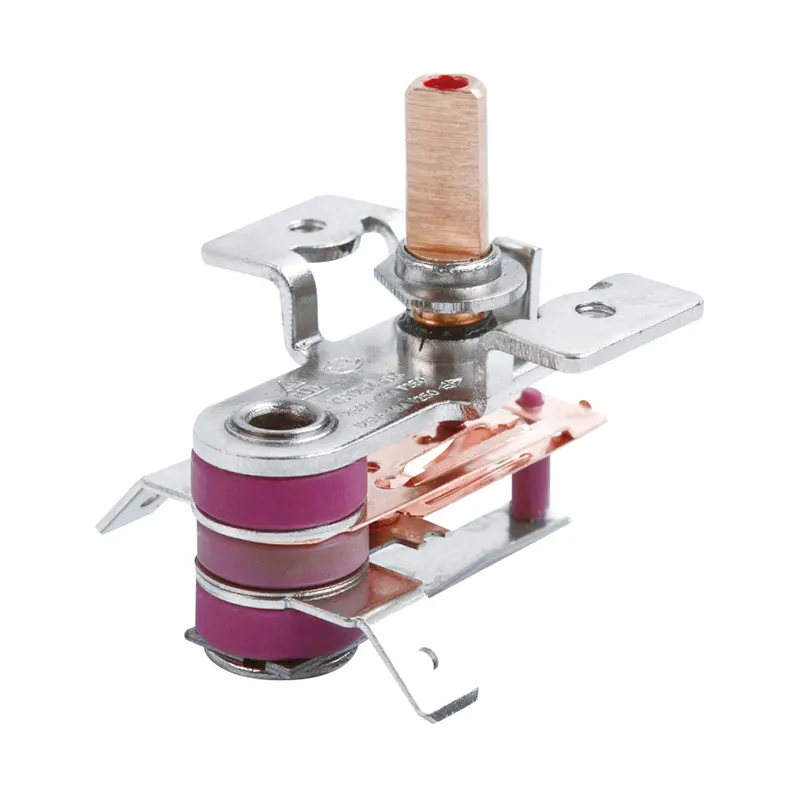

Electrical Steam Iron Temperatuer Controller

Technical Performance Specifications

High-Output Grade

Materials and Construction Standards

Silver Alloy Contact Rivets: Feature Silver Cadmium Oxide (AgCdO) or Silver Nickel (AgNi) contacts to prevent arc welding, pitting, and oxidation under high capacitive and resistive loads.

High-Quality Steatite Base: The insulating ceramic body is manufactured to strict dimensional tolerances and will not shrink, crack, or soften during continuous operation at temperatures exceeding 200°C.

Creep-Free Bimetallic Assembly: Precision-stamped bimetallic strips ensure crisp, decisive switching action without micro-arcing, thereby minimizing Radio Frequency Interference (RFI) and reducing contact wear.

Quality Control and Compliance Testing

Every batch from the automated production line undergoes 100% factory verification prior to packaging:

International Standards: Compliant with UL 60730-1, VDE (EN 60730-1), CE, CQC, RoHS 2.0, and REACH standards.

Thermal Calibration: Tested in temperature-controlled oil or air baths to verify that opening and closing points meet specifications.

Dielectric Withstand Voltage: Subjected to a 1500VAC, 60-second high-voltage breakdown test.

Product Parameter

Engineering Selection Guide

When selecting a suitable controller for an electric steam iron, ensure compatibility regarding the Electrical Steam Iron Temperatuer Controller's shaft dimensions, current load rating, thermal response time, and mounting configuration. Refer to the steps below to determine specific requirements.

Step 1: Select the Operating Mechanism

Adjustable Bimetallic Thermostat: Serves as the primary control component, connecting directly to the user-operated dial. Allows for continuous adjustment of the soleplate temperature across fabric settings ranging from nylon/silk to linen/cotton.

Fixed-Temperature Snap-Action Switch: Functions as an auxiliary safety temperature limiter or boil-dry cutoff device. Installed on the steam generator boiler or the auxiliary heating zone of the soleplate, it permanently or temporarily cuts off the circuit in the event of overheating.

Step 2: Determine the Temperature Range

The temperature differential determines the stability of steam output and prevents frequent switching:

High-temperature setting (160°C – 230°C): Suitable for cotton, linen, and continuous steam applications.

Medium-temperature setting (110°C – 160°C): Suitable for wool and polyester blends.

Low-temperature setting (50°C – 110°C): Suitable for synthetic fibers. A smaller differential (±3°C) is required to prevent a sudden temperature drop when water contacts the soleplate.

Differential Selection

Wide differential (8°C – 12°C): Recommended for dry irons to reduce switching frequency and extend the service life of silver contacts.

Narrow differential (3°C – 5°C): Suitable for high-power steam irons to ensure an immediate heating response when water enters the steam chamber.

Step 3: Match Shape and Mounting Structure

Shaft type: Options include D-cut shafts, cross-slotted shafts, or knurled shafts.

Shaft length and rotation angle: Standard shaft lengths range from 10mm to 30mm. Rotation options include 180°, 270°, or 300°.

Mounting bracket: Features a flat base design with standard hole spacing of 28mm or 36mm. Custom offset or bent mounting brackets are available for compact irons.

Step 4: Terminal Configuration and Spacing

Terminal width: Standard 6.3mm (1/4") or 4.8mm (1/10") tab terminals.

Terminal angle: 0° (horizontal/straight), 45° (angled), or 90° (vertical). Vertical layouts reduce the horizontal footprint in low-profile irons.

Step 5: Thermal Compensation Options

For high-power steam irons (2000W – 2800W), the injection of cold water can cause thermal lag on the soleplate surface before heat is conducted to the bimetallic strip. Non-compensated: Suitable for standard dry irons and lightweight travel irons.

With internal resistive compensation: A built-in heating element accelerates the bimetallic strip's response during high-intensity steam cycles, thereby maintaining a stable soleplate temperature.

Request Samples and Technical Quotes

To request calibrated engineering samples or obtain a quote within 24 hours, please provide the following details to our technical team:

Terminal dimensions and orientation angle

Estimated annual demand

Electrical load requirements (voltage and current)

Operating temperature range and temperature differential requirements

Production Details
