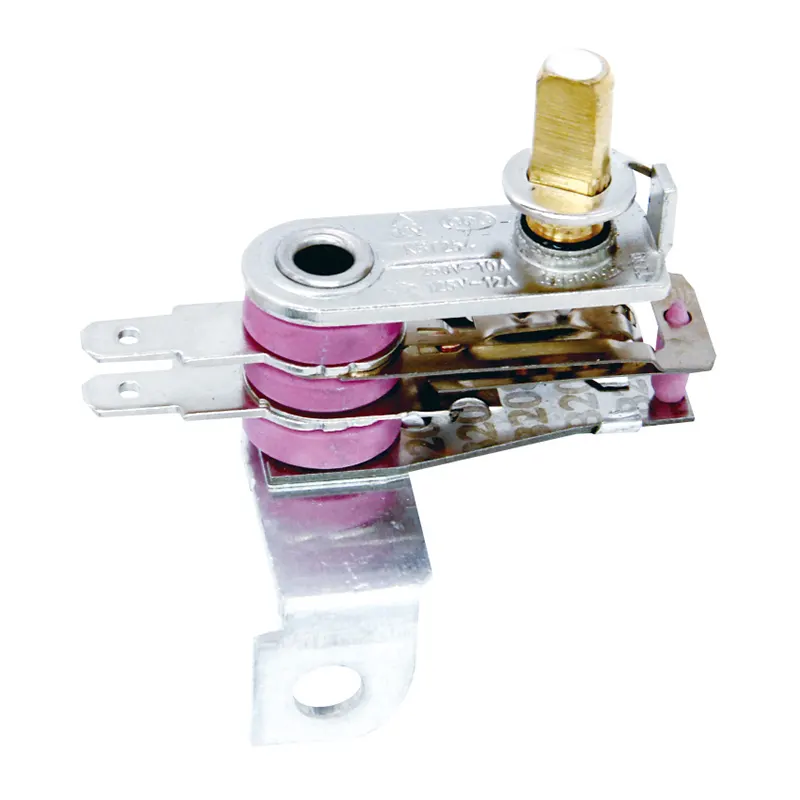

Grill Temperature Controller

Uncompromising Engineering for High-Wattage Grills & Smokers

Proprietary Snap-Action Mechanism: Traditional slow-growth bimetallic switches often suffer from contact creep, leading to micro-arcing, severe electrical noise, and electromagnetic interference. JIATAI’s spring-driven snap-action technology triggers contact separation in milliseconds, extinguishing arcs instantly and matching strict global appliance EMC benchmarks.

Heavy-Current Arc Suppression (20A Rating): Outdoor electric grills demand continuous high-wattage delivery. By embedding oversized solid Silver Cadmium Oxide (AgCdO) and Silver Nickel (AgNi) alloy rivets, our controller maintains a hyper-low contact resistance (≤ 30 mΩ) over 100,000 lifecycles, entirely eliminating surface pitting and contact welding under heavy inductive or resistive loads.

Set-Point Drift Prevention via Steatite Ceramic: High-temperature smoking and grilling chambers radiate severe ambient heat. Our structural base is injection-molded from high-frequency Steatite ceramic, preserving an insulation barrier of ≥ 100 MΩ even during nonstop 300°C exposure, ensuring the mechanical calibration never deforms or shifts over time.

Dual-Response Capillary & Stamped Bimetal Control: To prevent excessive temperature overshoot that burns food and wastes energy, our setup blends a precision-stamped bimetallic element with an optional liquid-expansion capillary probe. This achieves ultra-fast thermal tracking, confining temperature switching precision within a narrow ±2°C to ±4°C band.

Four Key Engineering Advantages:

1. Snap-Action Switching Technology (Eliminating Contact Creep)

Our proprietary spring-driven snap-action switch mechanism enables contact opening and closing within milliseconds. This rapid-break mechanism eliminates micro-arcing and reduces electrical noise, ensuring compliance with strict electromagnetic compatibility (EMC) standards for household and commercial appliances.

2. High-Current, Arc-Resistant Performance (Up to 20A 250VAC)

Our Advantage: We utilize solid Silver Cadmium Oxide (AgCdO) and Silver Nickel (AgNi) contact rivets. These alloy materials effectively resist surface pitting, material transfer, and contact welding caused by arcing during repeated switching, ensuring consistently low contact resistance (≤ 30 mΩ) over 100,000 operating cycles.

3. High-Temperature Resistant Steatite Ceramic Insulation

The base is molded from high-frequency steatite ceramic. This dimensionally stable ceramic material maintains excellent structural integrity and insulation performance (≥ 100 MΩ) even at continuous ambient temperatures up to 300°C, effectively preventing internal terminal short circuits and set-point drift.

4. Rapid Thermal Response and Minimal Overshoot

Featuring a precision-stamped bimetallic element and a liquid-expansion capillary temperature probe, our controller achieves precise thermal response control (±2°C to ±4°C). The snap-action mechanism cuts power instantly—eliminating slow contact engagement (creep)—thereby preventing food from burning and reducing energy consumption.

Product Parameter (Specification)

Rigorous Industrial Quality Assurance

Triple-Zone Thermostatic Bath Calibration: Every batch undergoes multi-stage immersion sensor validation across low, medium, and high grilling thermal envelopes to ensure strict factory reset and opening alignment.

2000 VAC High-Voltage Dielectric Testing: We subject 100% of production units to a 2000 VAC electrical breakdown test for 60 seconds, verifying total isolation between active electrical terminals and the external grounding bracket.

Global Compliance Engineering: Fully manufactured under strict ISO 9001:2015 control, directly complying with UL 60730-1, EN 60730-1, VDE, CE, RoHS 2.0, and REACH mandates.

Request Technical Specifications and Custom Samples

We can provide custom-calibrated samples and engineering drawings for OEM/ODM grill projects within 7 to 10 business days.
