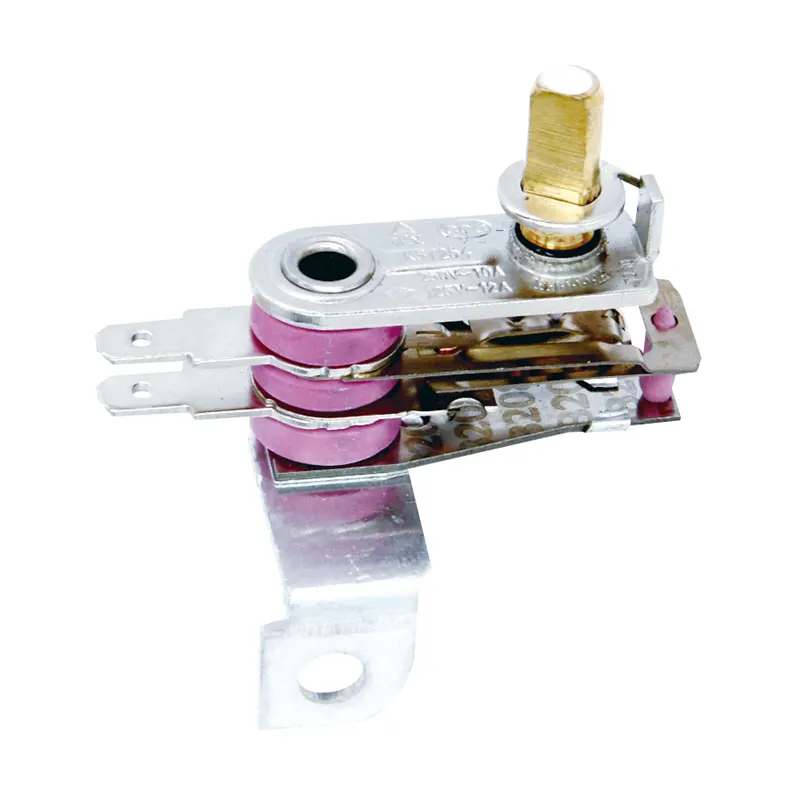

Waffle Maker Thermostat

Why Choose JIATAI Waffle Maker Thermostats?

Zero-Failure 20A Silver Contacts (AgCdO/AgNi): Standard 10A controllers often suffer from contact pitting and terminal welding under high-wattage commercial loads. JIATAI integrates heavy-duty silver-cadmium oxide rivets, expanding electrical capacity up to 20A at 250VAC to ensure 18+ months of trouble-free operation for franchise street-food equipment.

Thermal Lag Compensation Technology: Traditional bimetallic switches exhibit wide temperature fluctuations (up to ±12°C), causing soggy waffles and batter sticking when cold batter hits the baking plates. Our custom KST design features an integrated compensation resistor that narrows temperature tolerance to a precise ±3°C, accelerating base-plate thermal recovery from 45 seconds to just 18 seconds.

Extreme-Environment Steatite Ceramic Housing: Designed for intense grease, steam, and high-frequency lid flipping. The high-frequency ceramic insulation prevents internal dielectric breakdown up to 2000 VAC, ensuring zero electrical leakage in high-humidity commercial kitchens and street stalls.

Vibration-Resistant Riveting for Rotary Equipment: Tailored specifically for 180° flipping Belgian waffle makers. Our terminal pin styles (including screw, jointing, and 4.8/6.3mm pins) utilize tight-tolerance mechanical riveting, eliminating wire loosening or internal component detachment during continuous operational rotation.

Technical Specifications

Engineering Specifications & Compliance

Approvals & Standards: Full compliance with UL, cUL (125V~15A), TUV, CQC, CB (250V~10A/16A), and CE regulations.

Wide Thermal Range: Adjusts seamlessly from 50°C to 300°C (122°F to 572°F) to accommodate light-duty aluminum grids or heavy-duty cast iron browning surfaces.

100% Pre-Shipment Testing: Every manufacturing batch undergoes mandatory automated temperature calibration and high-voltage dielectric breakdown testing (Hi-pot 1800V-2000V AC for 1 minute) before global shipping.

Application Areas

1. Street Food and Dessert Chains

Performance Requirements: Features a sealed ceramic base insulation design to prevent internal electrical leakage in high-humidity and greasy environments.

Operating Environment: Rapid high-temperature cycling (up to 250°C), involving frequent lid opening and exposure to oil/batter splatter.

2. Restaurants and Hotels

Performance Requirements: Requires rapid thermal recovery when cold batter contacts the cooking surface to prevent undercooked centers or uneven browning.

Operating Environment: Continuous 12-hour daily operation; utilizes cast iron or heavy-duty cast aluminum heating plates.

3. Rotary Belgian Waffle Makers

Performance Requirements: Compact design utilizing vibration-resistant terminal riveting to prevent wiring from loosening during the flipping process.

Operating Environment: Commercial rotary equipment where internal wiring and switch components rotate continuously with the unit.

Product Parameter (Specification)

Customer Case Studies

Case Study 1:

Customer Profile: A franchise equipment supplier operating over 500 "egg waffle" (bubble waffle) retail stalls across Southeast Asia.

Problem: Standard 10A thermostats failed after just 3–4 months of use due to arc erosion and contact welding under a continuous 16A current load. Burnt contacts caused the heating element to remain permanently energized, scorching the cast iron cooking plates.

Solution: Replaced existing components with our high-current Waffle Maker Thermostat, featuring silver-cadmium oxide (AgCdO) contact rivets rated at 20A 250VAC. The temperature-sensing probe was embedded directly into a mounting boss on the lower cast iron plate.

Results: The robust AgCdO contacts eliminated contact welding issues associated with switching 16A inductive/resistive loads. Over an 18-month monitoring period, the customer reported a zero field failure rate for the thermostats across 2,000 units in operation.

Case Study 2:

Customer Profile: A North American commercial kitchen equipment OEM manufacturing 2400W dual-plate Belgian waffle makers for hotel breakfast service lines.

Problem: The customer's original bimetallic thermostats exhibited significant temperature fluctuations (±12°C). When cold batter is poured in, the surface temperature of the base plate drops sharply below the boiling point; if the thermostat has not yet triggered heating, the resulting waffle becomes soggy and the batter sticks.

Solution: We provide a custom KST bimetallic thermostat featuring a built-in compensation resistor, which narrows the temperature fluctuation range to ±3°C.

Result: The built-in resistor preheats the bimetallic element during standby, reducing thermal lag by 60%. The base plate temperature recovery time is cut from 45 seconds to 18 seconds—ensuring a crispy waffle crust—while the total baking cycle time is reduced by 15%.

We have extensive experience, so come and get your personalized solution!
