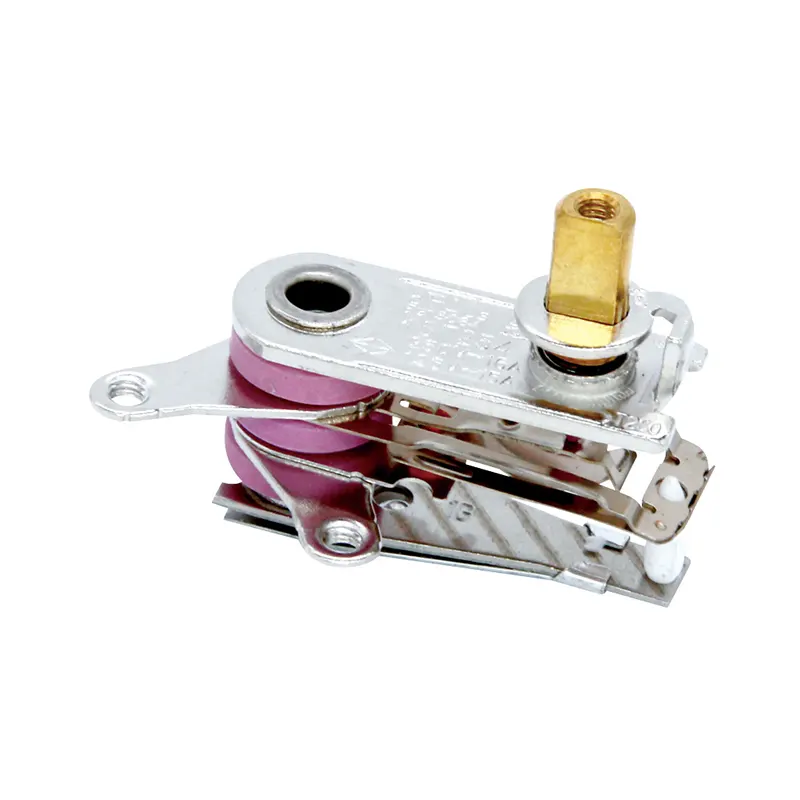

Pancake Maker Thermostat
The Pancake Maker Thermostat is engineered to withstand high-temperature environments and frequent thermal cycling, offering precise temperature control within the 50°C to 300°C range. Jiatai holds certifications including UL 60730, VDE, CE, and RoHS, with a global market presence. The product utilizes silver-cadmium oxide contacts rated up to 20A/250VAC, effectively preventing contact sticking and surface pitting even under heavy-duty commercial usage.
Temperature fluctuation directly affects cooking quality in pancake makers, crepe machines and commercial griddles. Uneven heating may result in inconsistent product quality and unnecessary energy consumption.
JIATAI Pancake Maker Thermostat is designed to monitor and regulate heating plate temperature through a mechanical temperature sensing structure. When the preset temperature is reached, the thermostat controls circuit switching to maintain stable heating cycles.
The design focuses on the requirements of food equipment manufacturers, providing reliable temperature control without relying on complex electronic systems.
Technical Specifications
|
Safety Certifications |
UL, VDE, ENEC, CE, CQC, RoHS 2.0, REACH |
|
Operating Temperature Range |
50°C to 300°C (122°F to 572°F) |
|
Electrical Load Rating |
16A / 250VAC | 20A / 250VAC (Resistive load) |
|
Temperature Differential (Hysteresis) |
2°C to 10°C (customizable based on heating element thermal inertia) |
|
Base Insulation Material |
High-frequency steatite ceramic / Stainless steel capillary sheath |
|
Contact Lifespan |
Minimum 100,000 cycles at full rated electrical load |
|
Dielectric Breakdown Voltage |
2000VAC (for 1 minute) |
Product Comparison Matrix
Choosing between a KST Adjustable Bimetal Thermostat, a Capillary Bulb Thermostat, and a Digital NTC Sensor System depends on your pancake maker's heating element layout, griddle plate thickness, and targeted market tier. Use the matrix below to compare structural and performance parameters.
|
Selection Parameter |
KST Adjustable Thermostat |
Capillary Bulb Thermostat |
Digital NTC Assembly (PCB + Sensor) |
|
Primary Appliance Category |
Compact/Home Pancake Makers |
Commercial Heavy-Duty Crepe & Pancake Griddles |
Smart/Digital Commercial Baker Systems |
|
Thermal Sensing Method |
Direct bimetal contact on heating plate |
Liquid-filled capillary tube & sensing bulb |
Thermistor resistance change via MCU |
|
Temperature Range |
50°C to 250°C |
50°C to 300°C+ |
-20°C to 300°C |
|
Control Precision |
±5°C to ±8°C |
±2°C to ±4°C |
±1°C |
|
Max Electrical Load |
16A at 250VAC |
20A at 250VAC |
Requires external relay/SSR (typically 30A+) |
|
Ambient Resistance |
High (Ceramic base handles up to 260°C) |
High (Bulb handles up to 320°C continuous) |
Moderate (PCB requires heat isolation) |
|
Installation Complexity |
Low (Direct mounting on plate boss) |
Moderate (Requires routing flexible tube) |
High (Requires PCB, display, & wiring harness) |
|
Mechanical Life Rating |
100,000 cycles |
100,000 cycles |
Electronic (Relay dependent: 50,000–100,000) |
|
Unit Cost Profile |
Economical (Best ROI for high volume) |
Mid-Range (Best for commercial grade) |
Premium (High component & assembly cost |
Product Parameter
| Ratings and Approval | 250V~10A/16A(TUV CQC CB),125V~15A(UL&CUL) |
| Max.Ambient temperature | T250℃ |
| Temperature control range | 60~250℃ |
| Temperature control precision | ±15℃ |
| Operating life | 100000 cycles |
| On Angle(Room temp：25℃) | Can depend on design |
| Center distance | 15mm/18mm/20mm |
| ON~OFF difference | Can depend on design |
| Length of tune up shaft | Can depend on design |
| Operating angle | Can depend on design |
| Terminal pin angle | Can depend on design |
| Terminal pin style |
① Screw terminal ② Jointing terminal ③4.8/6.3MM Terminal pin |
|
Hi-pot |
1800V AC 1minute |
Quality Control and Global Certification
Every batch undergoes 100% automated testing before leaving the factory:
Dielectric Strength Test: Tested at 2000 VAC for 60 seconds to ensure no current leakage to the external housing.
Regulatory Compliance: Meets UL 60730-1 and EN 60730-1 safety standards for foodservice and commercial cooking equipment.
Thermostat Calibration: Verification of switching precision across low, medium, and high settings.
Request engineering samples and a quote today.
How to Select the Right Thermostat for Food Heating Equipment
Selecting a suitable thermostat depends on several equipment factors.
The heating plate structure determines the required sensing method and installation design. Equipment with thicker heating surfaces may require different temperature response characteristics compared with compact countertop appliances.
Electrical load is another key consideration. Manufacturers should select thermostat ratings according to heating element power requirements to ensure safe switching performance.
For customized equipment projects, JIATAI can evaluate temperature range, mounting conditions and electrical specifications to recommend a suitable configuration.
Production Details
FAQ
1. What type of equipment can use a pancake maker thermostat?
This thermostat is designed for pancake makers, crepe machines, electric griddles and other food heating equipment requiring stable temperature control.
2. Why is a high-temperature thermostat important for pancake makers?
Pancake makers operate at elevated temperatures with repeated heating cycles. A high-temperature thermostat helps maintain consistent cooking performance and prevents overheating issues.
3. What temperature range does this thermostat support?
The thermostat supports temperature control applications from 50℃ to 300℃ depending on product configuration and customer requirements.
4. Can JIATAI customize thermostat specifications for cooking equipment?
Yes. JIATAI can adjust temperature settings, terminal structures, shaft dimensions and other specifications according to equipment requirements.
5. What certifications are available for this thermostat?
The product supports certifications including UL, VDE, ENEC, CE, CQC, RoHS and REACH to meet different market requirements.
6. Why choose JIATAI as a pancake maker thermostat supplier?
JIATAI specializes in temperature control components with over 40 years of manufacturing experience, supporting global equipment manufacturers with stable production and customized thermostat solutions.
